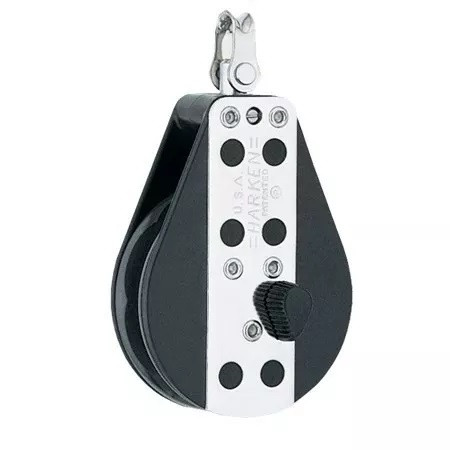

Harken 3.00" Hexaratchet Block - Swivel, Starboard (HK009)

Harken 3.00" Hexaratchet Block - Swivel, Starboard

Harken
SKU:
HK009
|
UPC:
097653002239
$218.77
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item.  Delivery lead time may take 2 or more weeks.

Hexaratchets® grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism. Use the 043 or 044 reverse ratchets with the 019 and 009 singles or 050 single with becket on spinnaker and jib sheets where ratchets rotate in opposite directions and on/off switches face up.

Part no. 009: 3.00" Hexaratchet Block - Swivel, Starboard

Specifications

  • Sheave Ø (mm) 76 mm
  • Sheave Ø (in) 3 in
  • Length (mm) 127 mm
  • Length (in) 5 in
  • Weight (g) 241 g
  • Weight (oz) 8.5 oz
  • Maximum line Ø (mm) 12 mm
  • Maximum line Ø (in) 7/16 in
  • Maximum working load (kg) 340 kg
  • Maximum working load (lb) 750 lb
  • Breaking load (lb) 2000 lb
  • Breaking load (kg) 907 kg
  • Shackle pin Ø (mm) 5 mm
  • Shackle pin Ø (in) 3/16 in
  • Holding power 15:1
  • Turns clockwise



Resources/References:

Harken Support Manuals

Need help to design your Harken system - take a look here for the Harken System Guides and Drawings
