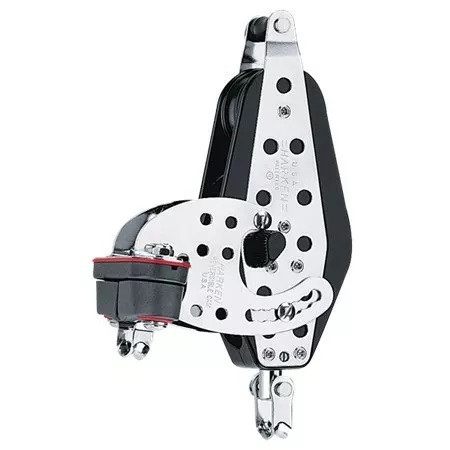

Harken 3.00" Fiddle Hexaratchet Block - Swivel, Becket, Cam Cleat, Starboard (HK042)

Harken 3.00" Fiddle Hexaratchet Block - Swivel, Becket, Cam Cleat, Starboard

Harken
SKU:
HK042
|
UPC:
097653002512
$555.22
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item.  Delivery lead time may take 2 or more weeks.

Hexaratchets® grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism.

Part no. 042: 3.00" Fiddle Hexaratchet Block - Swivel, Becket, Cam Cleat, Starboard

Specifications

  • Sheave Ø (mm) 76 mm
  • Sheave Ø (in) 3 in
  • Length (mm) 241 mm
  • Length (in) 8 1/2 in
  • Weight (g) 510 g
  • Weight (oz) 18 oz
  • Shackle pin Ø (mm) 6 mm
  • Shackle pin Ø (in) 1/4 in
  • Maximum line Ø (mm) 10 mm
  • Maximum line Ø (in) 3/8 in
  • Maximum working load (kg) 340 kg
  • Maximum working load (lb) 750 lb
  • Breaking load (kg) 1134 kg
  • Breaking load (lb) 2500 lb
  • Turns clockwise



Resources/References:

Harken Support Manuals

Need help to design your Harken system - take a look here for the Harken System Guides and Drawings
