Harken 22mm Block - Removable Sheave (HSB271)

Harken 22mm Block - Removable Sheave

Harken
SKU:
HSB271
|
UPC:
097653070818
$50.37
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item.  Estimated delivery lead time is 3-4 weeks.

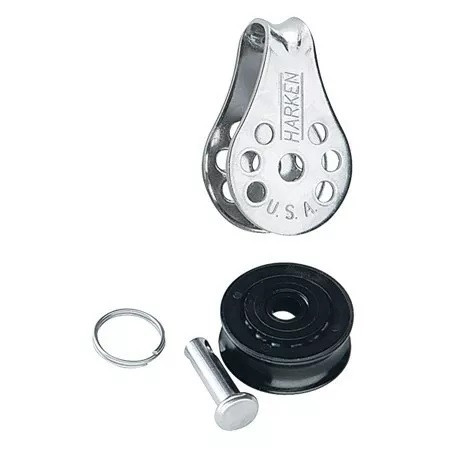

This block is a special version of the 224 22 mm single Micro block with a removable sheave. The sheave rivet has been replaced with a clevis pin and cotter ring. Micro block sheaves run on Delrin® ball bearings for fast trim and release under load.

Part no. HSB271: 22mm Block - Removable Sheave

Specifications

  • Weight (oz) 0.4 oz
  • Sheave Ø (mm) 22 mm
  • Sheave Ø (in) 7/8 in
  • Length (mm) 38 mm
  • Length (in) 1/2 in
  • Weight (g) 15 g
  • Maximum line Ø (mm) 6 mm
  • Maximum line Ø (in) 1/4 in
  • Maximum working load (kg) 91 kg
  • Maximum working load (lb) 200 lb
  • Breaking load (kg) 544 kg
  • Breaking load (lb) 1200 lb
