Harken 16mm Block - Removable Sheave (HSB294)

Harken 16mm Block - Removable Sheave

Harken
SKU:
HSB294
|
UPC:
097653110606
$57.53
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item.  Estimated delivery lead time is 3-4 weeks.

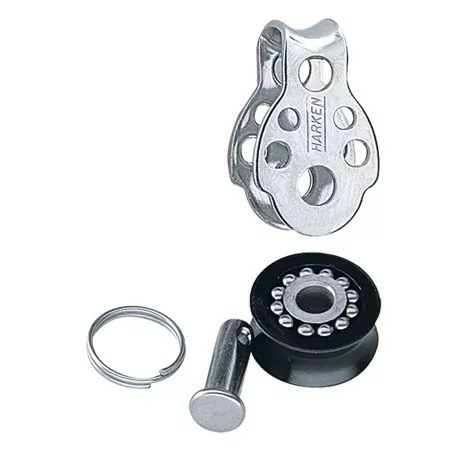

This block is a special version of the 404 16 mm block with a removable sheave. The sheave rivet has been replaced with a clevis pin and cotter ring. The bearing system uses stainless steel balls in a captive grooved race.

Part no. HSB294: 16mm Block - Removable Sheave

Specifications

  • Sheave Ø (mm) 16 mm
  • Sheave Ø (in) 5/8 in
  • Length (mm) 29 mm
  • Length (in) 1 1/8 in
  • Weight (g) 5 g
  • Weight (oz) 0.2 oz
  • Maximum line Ø (mm) 5 mm
  • Maximum line Ø (in) 7/32 in
  • Maximum working load (kg) 113 kg
  • Maximum working load (lb) 250 lb
  • Breaking load (lb) 1200 lb
  • Breaking load (kg) 544 kg



References/Resources:

Need help to design your Harken system - take a look here for the Harken System Guides and Drawings
And here for Harken Manuals & Support Information
