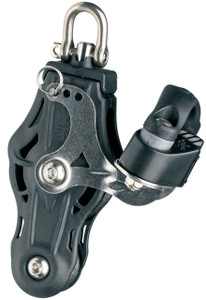

Wichard 45mm Ball Bearing Block Fiddle + Cam Swivel Shackle Head

Wichard 45mm Ball Bearing Block Fiddle + Cam Swivel Shackle Head

Wichard
SKU:
73407
|
UPC:
3587790734072
$161.50
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Wichard fiddle ball bearing block - Sheave 45 - Swivel head & cam

Part # 73407

  • Complete range of ball bearing blocks
  • Modern design
  • Innovative design with two lateral races of ball bearings
  • Smooth running for low load adnhigh speed action
  • Under high load the hub runs on stainless steel bush which allows the sheave to run freely
  • Light cheeks protecting the sheave
  • Wide choice of fastenings thanks to the universal head

Applications

  • Mainsheet systems
  • Boom vang

Specifications

  • Materials
    • Grade 316L stainless steel head configuration
    • Grade 316L stainless steel load straps
    • POM cheeks
    • Delrin® ball bearings
    • Composite saddle for cam models
    • Composite sheave
    • Terminal (shackle i.e…): 316L stainless steel grade
  • Rope size: Pour cordage de 10 m
  • Length (mm): 130
  • Width (mm): 86
  • Thickness (mm): 61
  • Sheave diameter (mm): 45
  • Schackle diameter (mm): 5
  • Working load (kg): 360
  • Breaking load (kg): 1000
  • Weight (g): 240
