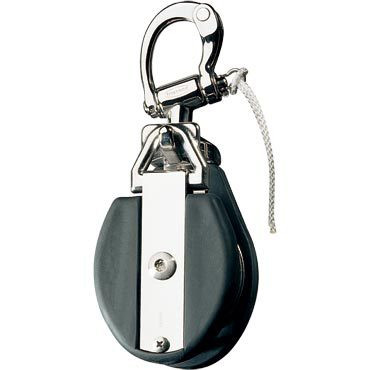

Ronstan Snatch Block, Stainless Steel Sheave, 240mm LOA (RF6751)

Ronstan Snatch Block, Stainless Steel Sheave, 240mm LOA

Ronstan
SKU:
RF6751
|
UPC:
9316800226351
$582.98
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF6751: SNATCH BLOCK STAINLESS STEEL SHEAVE 240mm LOA
Single, trunnion head

FEATURES

  • High strength.
  • Secure latch mechanism.
  • Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces.
  • Snap shackle head allows block to swivel through 360 degrees.

SPECIFICATIONS

  • Sheave diameter (mm) 80
  • B.L. (kg) 5000
  • M.W.L. (kg) 2500
  • Max. Rope diameter (mm) 19
  • Weight (g) 1480
  • Sheave Material: Grade 316 St/St

PRODUCT INFORMATION

  • Trunnion snap shackle provides the same swivel action and offers additional articulation from side to side.
  • Spare Parts: RF6461 Replacement Plunger Pin Kit

APPLICATIONS

  • Removable spinnaker sheet deflector blocks for boats up to 13m (43ft).
  • Temporary sheeting point while changing sheets for boats up to 13m (43ft).
  • Temporary reefing block for boats up to 13m (43ft).
  • Spare or replacement block for general use on larger boats depending on line angle and load.
  • Temporary outboard sheet lead for headsail trimming.

MATERIALS

  • Grade 316 Stainless Steel frame, load strap, sheave and needle roller bearings.
  • Soft thermoplastic rubber cheeks.
  • Investment cast Grade 15-5PH Stainless Steel snap shackle
