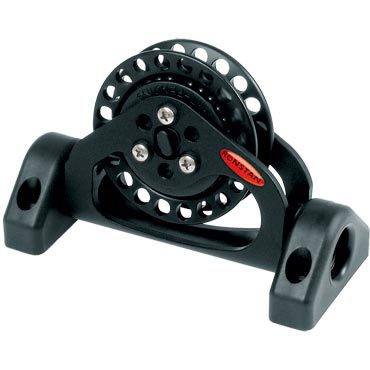

Ronstan Series 75 Ratchet, Pivoting Low Lead (RF72174)

Ronstan Series 75 Ratchet, Pivoting Low Lead

Ronstan
SKU:
RF72174
|
UPC:
9316800293513
$441.95
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF72174: SERIES 75 RATCHET, PIVOTING LOW LEAD BLOCK
Single Pivoting Low Lead Ratchet Block

FEATURES

  • Unrivalled 20:1 holding power
  • Dual sided On/Off switch
  • Ability to operate On/Off switch under load
  • Low friction ball bearing system
  • Lightweight
  • Cheek cut-outs for easy bearing maintenance

SPECIFICATIONS

  • Sheave diameter (mm) 75
  • B.L. (kg) 1370
  • M.W.L. (kg) 420
  • Max. Rope diameter (mm) 12
  • Weight (g) 270
  • Fastener Ø (mm) 6

PRODUCT INFORMATION

Maintains alignment with a variable line entry-angle. The line passes through the centre of the pivot support, remaining as close to the deck as possible. The patented extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs - up to 20:1 holding power.

Unrivalled low weight is achieved by the use of a Torlon® ratchet pawl, high-grade machined alloy sheave and black Acetal hubs and bearings. ON/OFF switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for sheave replacement with RF72000.

APPLICATIONS

  • Mainsheet on powerful dinghies and skiffs
  • Control line applications on larger yachts
  • Spinnaker sheets on sportsboats and small keel boats (lateral lead blocks)

MATERIALS

  • Ball bearings: High compression strength acetal
  • Sheave and cheek plates: Anodised aluminium
  • Ratchet pawl: High strength Torlon®
