Ronstan Series 75 Core Block, Mast Base, 8mm Clevis Pin (RF74108A)

Ronstan Series 75 Core Block, Mast Base, 8mm Clevis Pin

Ronstan
SKU:
RF74108A
|
UPC:
9316800456062
$127.89
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

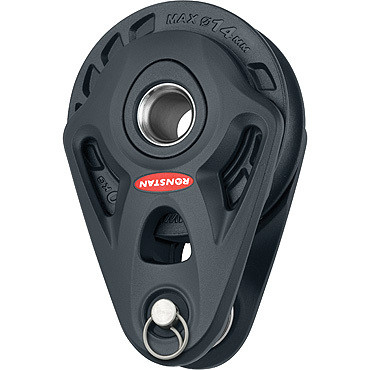

RF74108A: SERIES 75 CORE BLOCK™, MAST BASE WITH 8mm CLEVIS PIN
Mast base block. 8mm Clevis Pin

FEATURES

  • Class leading performance and sleek, contemporary styling
  • Excellent dynamic and high static load performance
  • Less than half the friction of the nearest competitorSuits attachment to 14mm (9/16”) wide mast collar post
  • Removable 8mm (5/16”) clevis pin at head
  • Central hub hole can be used as a becket take-off or tie-up point
  • * Full block rated load can only be achieved with uniformly distributed load cross full length of clevis pin ie. 14mm (9/16") diameter mast collar post of 14mm (9/16")wide mast collar plate/tang

SPECIFICATIONS

  • B.L. (kg) 3000*
  • M.W.L. (kg) 1500*
  • Max. Rope diameter (mm) 14
  • Weight (g) 230
  • Pin Ø (mm) 8
  • Notes: Full block rated load can only be achieved with uniformly distributed load across full length of clevis pin. i.e. 14mm (9/16”) diameter mast collar post or 14mm (9/16”) wide mast collar plate/tang.

MATERIALS

  • Sheave: U.V. stabilised acetal or anodised aluminium (AW models)
  • Cheek plates: Aluminium alloy
  • Ball Bearings: High compression strength carbon black acetal
  • Pin: 2205 stainless steel
