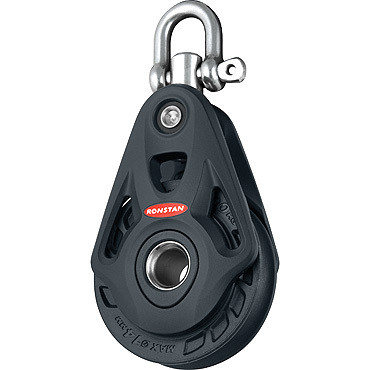

Ronstan Series 75 Core Block, Single (RF74100)

Ronstan Series 75 Core Block, Single

Ronstan
SKU:
RF74100
|
UPC:
9316800413225
$167.26
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF74100: SERIES 75 CORE BLOCK™, SINGLE
Single, universal head can be locked at 0 or 90 degrees or left free to swivel.

FEATURES

  • Class leading performance and sleek, contemporary styling.
  • Excellent dynamic and high static load performance.
  • Less than half the friction of the nearest competitor.
  • Universal head with full 3-axis articulation.
  • Head posts can be locked at 0 or 90 degrees, by using a 2.5mm Hex Key.
  • Alloy Rope/Wire sheave version also available.
  • Central hub hole can be used as a becket take-off or tie-up point, Max 13.5mm line.

SPECIFICATIONS

  • B.L. (kg) 3000
  • M.W.L. (kg) 1500
  • Max. Rope diameter (mm) 14
  • Weight (g) 354
  • Pin Ø (mm) 8

PRODUCT INFORMATION

  • Universal head. The head assembly incorporates a brass bearing washer to provide smooth 360° rotation of the post and shackle.
  • A set screw arrangement allows the head to be locked at 0° or 90°. Shackles are high quality forged grade 316 stainless steel.

MATERIALS

  • Sheave: U.V. stabilised acetal or anodised aluminium (AW models)
  • Cheek plates: Aluminium alloy
  • Ball Bearings: High compression strength carbon black acetal
  • Shackle, post & hub: Grade 316 stainless steel
