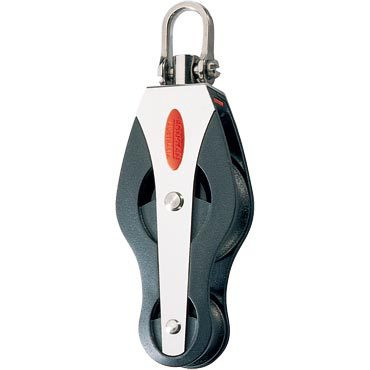

Ronstan Series 40 Ball Bearing Block, Fiddle, Universal Head (RF40500)

Ronstan Series 40 Ball Bearing Block, Fiddle, Universal Head

Ronstan
SKU:
RF40500
|
UPC:
9316800244133
$71.09
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF40500: SERIES 40 BALL BEARING BLOCK, FIDDLE
Fiddle block with universal head

FEATURES

  • Low friction acetal bearing system
  • Lightweight
  • Cheek cut-outs for easy bearing maintenance
  • Captive Lock™ universal head
  • Slotted pin shackle eliminates fouled lines
  • Low friction, 2-stage ball bearing system
  • High static and dynamic load capacity

SPECIFICATIONS

  • Sheave diameter (mm) 40 + 24
  • B.L. (kg) 1000
  • M.W.L. (kg) 350
  • Max. Rope diameter (mm) 8
  • Weight (g) 90
  • Pin Ø (mm) 5

PRODUCT INFORMATION

  • Sheaves running on acetal ball bearings provide high performance & low friction.
  • The 2-stage ball bearing system provides consistent performance over the full load range.
  • The Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.

APPLICATIONS

  • Mainsheet
  • Halyard
  • Vang
  • Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8m (26ft)
  • Typically used in direct 4:1 purchase systems such as mainsheets and boom vangs
  • On larger boats they are used for fine-tune mainsheet tackles, outhauls, cunninghams, checkstays, genoa lead pullers and traveller controls

MATERIALS

  • Acetal ball bearings.
  • UV stabilised Acetal sheave.
  • Grade 316 stainless steel load strap and head fitting.
  • Impact and UV resistant, fibre reinforced Nylon cheeks.
