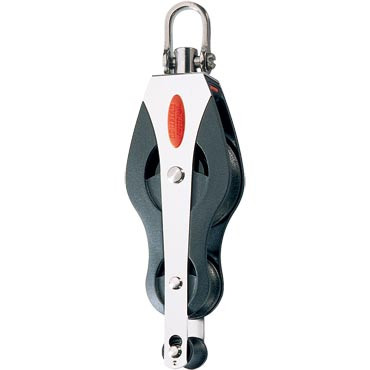

Ronstan Series 40 Ball Bearing Block, Fiddle, Becket (RF40510)

Ronstan Series 40 Ball Bearing Block, Fiddle, Becket

Ronstan
SKU:
RF40510
|
UPC:
9316800244164
$88.24
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF40510: SERIES 40 BALL BEARING BLOCK, FIDDLE WITH BECKET
40mm fiddle block with becket and universal head

FEATURES

  • Low friction Acetal bearing system
  • Lightweight
  • Cheek cut-outs for easy bearing maintenanceCaptive Lock™ universal head
  • Slotted pin shackle eliminates fouled lines.
  • Snap fit removable becket pin

SPECIFICATIONS

  • B.L. (kg) 1000
  • M.W.L. (kg) 350
  • Max. Rope diameter (mm) 8
  • Weight (g) 97
  • Pin Ø (mm) 5

PRODUCT INFORMATION

  • Sheaves running on Acetal ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
  • Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.

APPLICATIONS

  • Typically used in direct 4:1 purchase systems such as mainsheets and boom vangs.
  • On larger boats they are used for fine-tune mainsheet tackles, outhauls, cunninghams, checkstays, genoa lead pullers and traveller controls.

MATERIALS

  • Acetal ball bearings
  • UV stabilised Acetal sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fibre reinforced Nylon cheeks
