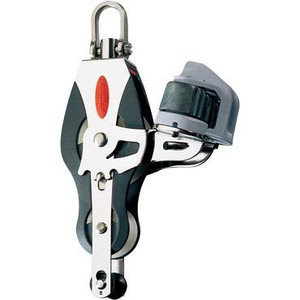

Ronstan Series 50 All Purpose Block, Fiddle Cleat
Ronstan
$119.13
(No reviews yet)
Write a Review
Ronstan
Ronstan Series 50 All Purpose Block, Fiddle Cleat
RF51520: SERIES 50 AP BLOCK FIDDLE CLEAT
SPECIFICATIONS
- Sheave diameter (mm) 50
- B.L. (kg) 1500
- M.W.L. (kg) 525
- Max. Rope diameter (mm) 10
- Weight (g) 311
- Weight (kg) 318
- Notes: Line load through cleat not to exceed 175kg (385lb)
FEATURES
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating sheave
- Captive Lock™ universal head
PRODUCT INFORMATION
All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required. Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.
APPLICATIONS
-
Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft)
MATERIALS
- Grade 316 stainless steel load strap
- Impact and UV resistant, fibre reinforced Nylon cheeks
