Ronstan Series 50 All Purpose Block, Fiddle, Becket

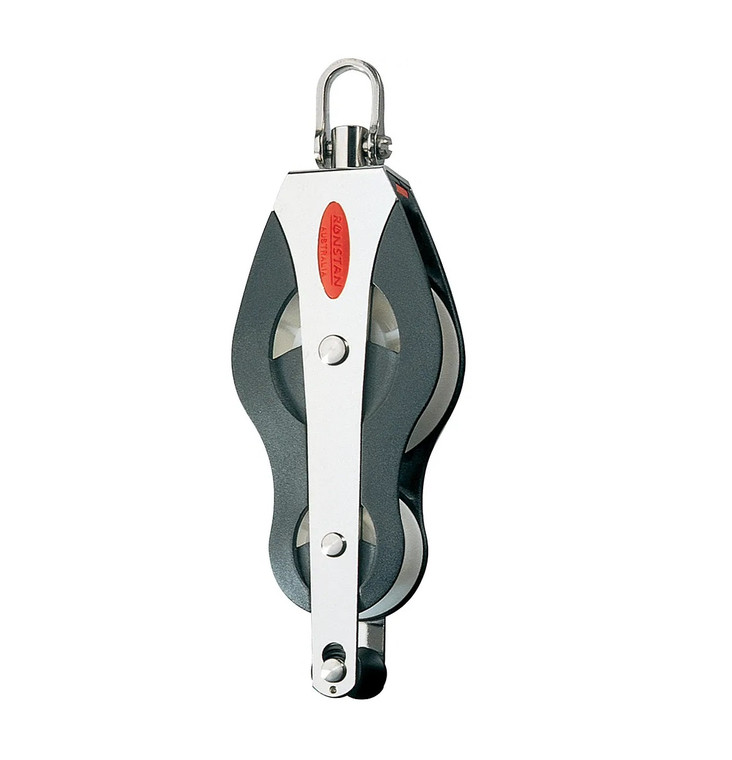

RF51510: SERIES 50 ALL PURPOSE BLOCK, FIDDLE WITH BECKET
All purpose fiddle block with becket and universal head
FEATURES
- Exceptionally high working loads
- Low maintenance, long service life
- Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
- Captive Lock™ universal head
- Slotted pin shackle eliminates fouled lines
- Snap fit removable becket pin
- Spare Parts - RF51010 Replacement Becket Pin, RF150 Shackle
SPECIFICATIONS
- Sheave diameter (mm) 54 + 34
- B.L. (kg) 1500
- M.W.L. (kg) 750
- Max. Rope diameter (mm) 10
- Weight (g) 176
- Pin Ø (mm) 5
- Qty. Balls 74
PRODUCT INFORMATION
- All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
- Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
- Becket pin is removeable so line can be spliced prior to fitting and is ingeniously locked into position without the use of a clevis pin, split ring or tools.
APPLICATIONS
- Mainsheet and halyard applications, vang and spinnaker control lines on boats to 10m (33ft).
- Ideal for fine-tune mainsheet tackles, cunninghams, backstays and other control line purchase systems.
MATERIALS
- Grade 316 stainless steel load strap
- Impact and UV resistant, fibre reinforced Nylon cheeks
