Ronstan Series 40 All Purpose Deck Organisers
Ronstan
$76.76 - $109.99
(No reviews yet)
Write a Review
Ronstan
Ronstan Series 40 All Purpose Deck Organisers

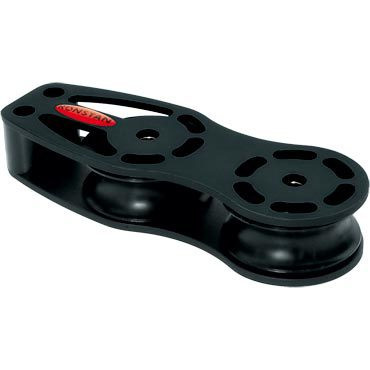

RF41821: Series 40 All Purpose Double Deck Organiser
2x 40mm Sheaves, Requires 4x 6mm (1/4") Fasteners
SPECIFICATIONS
- Sheave diameter (mm) 40
- B.L. (kg) 1000
- M.W.L. (kg) 500
- Max. Rope diameter (mm) 12
- Weight (g) 101
- Fastener Ø (mm) 6
- Qty. Fasteners 4
RF41831: Series 40 All Purpose Triple Deck Organiser
3x 40mm Sheaves, Requires 5x 6mm (1/4") Fasteners
SPECIFICATIONS
- Sheave diameter (mm) 40
- B.L. (kg) 1000
- M.W.L. (kg) 500
- Max. Rope diameter (mm) 12
- Weight (g) 142
- Fastener Ø (mm) 6
- Qty. Fasteners 5
RF41841: Series 40 All Purpose Quadruple Deck Organiser
4x 40mm Sheaves, Requires 6x 6mm (1/4") Fasteners
SPECIFICATIONS
- Sheave diameter (mm) 40
- B.L. (kg) 1000
- M.W.L. (kg) 500
- Max. Rope diameter (mm) 12
- Weight (g) 185
- Fastener Ø (mm) 6
- Qty. Fasteners 6
FEATURES
- Lightweight design with cheek cut outs for easy bearing maintenance
- Through hub mounting for maximum strength
- All-purpose bearing system provides maximum static load capacity
- Mount with 4 x 6mm (1/4”) fasteners, not supplied
- Length 116mm (4 9/16")
- Hole centres at 48.5mm (1 29/32")
PRODUCT INFORMATION
- Deck organisers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats.
- Sheaves are made from impact resistant Acetal.
- The deck organisers have alloy cheeks.
- All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating.
APPLICATIONS
- Line deflection on larger yachts (depending on load and angle of deflection)
- Series 40 - halyard and control line deflection on boats to 11m (36ft)
MATERIALS
- Cheek plates: Anodised aluminium
- U.V. stabilised Acetal sheaves
- Grade 316 stainless steel hubs
