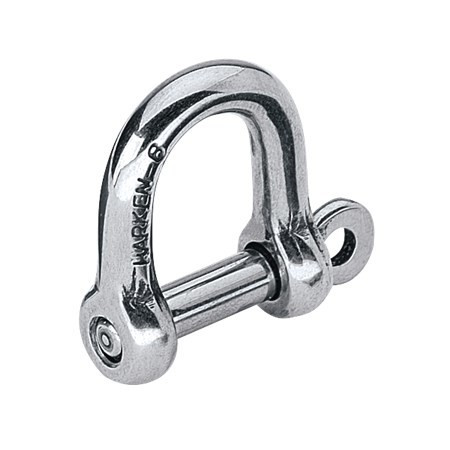

Harken 8mm High Resistance D Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an "HR" imprint for easy identification.
Part no. 2116: 8mm "D" Shackle - High Resistance
Specifications
- Shackle pin Ø (mm) 8 mm
- Shackle pin Ø (in) 5/16 in
- Weight (g) 56.7 g
- Weight (oz) 2 oz
- A (mm) 25 mm
- A (in) 1 in
- B (mm) 16 mm
- B (in) 5/8 in
- Maximum working load (kg) 2330 kg
- Maximum working load (lb) 5130 lb
- Breaking load (kg) 4650 kg
- Breaking load (lb) 10260 lb
