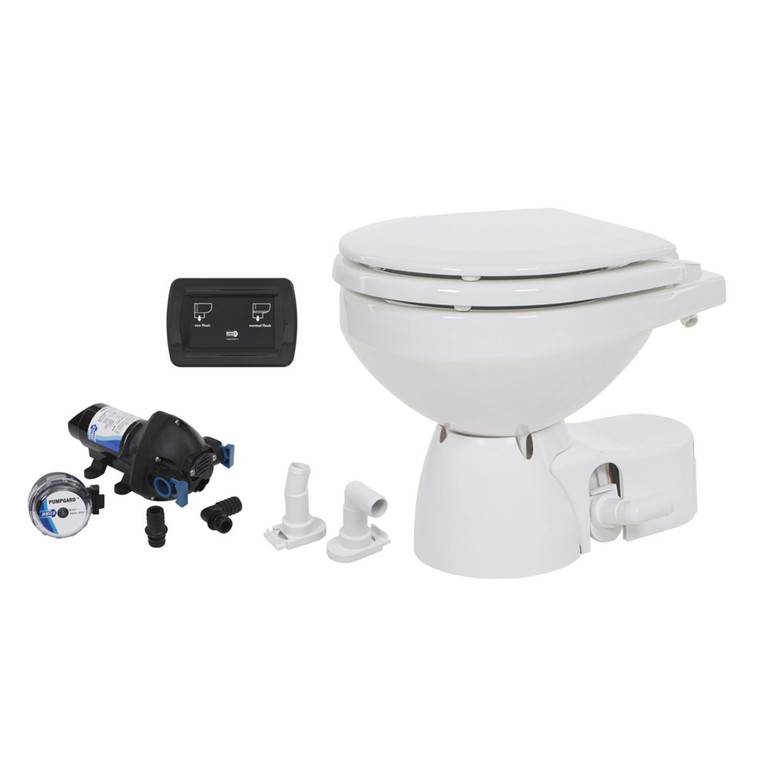

RWB Jabsco Quiet Flush E2 Toilet - Regular Bowl

Jabsco Quiet Flush E2 Marine Electric Toilet
Smart Design. Quiet Operation. Ultimate Comfort.

From busy charter boats to performance racing yachts, the Jabsco Quiet Flush E2 marine toilet delivers a new standard of convenience, performance, and comfort on board. Engineered to tackle common marine sanitation challenges, the Quiet Flush E2 features an intuitive design for effortless installation, simplified maintenance, and quiet, touch-button operation.

With a rotatable base and discharge pump, this compact unit is ideal for tight spaces. The innovative quick-release system ensures fast, tool-free access to the discharge pump, making service and maintenance a breeze.

Key Features

• Flexible Installation: Rotatable base and discharge pump allow custom positioning in confined spaces.
• Easy Maintenance: Quick-release system provides direct access to the discharge pump for hassle-free servicing.
• Smart Touch Control: Sleek touch panel offers three flush settings, including an eco-friendly water-saving mode.
• Quiet Close Comfort: Soft-close seat adds a premium touch to regular-size bowls.
• Multiple Configurations: Available in Compact or Regular bowl sizes, with fresh or raw water rinse options.
• Modern Design: Streamlined, easy-to-clean shroud enhances aesthetics and hygiene.

Flushing Options

• Raw or Sea Water Flushing: Includes a 12V or 24V 3 GPM (11 LPM) Jabsco Par-Max 3 rinse pump, 40-mesh in-line strainer, and ½" (15mm) hose barb ports.
• Freshwater Flushing: Equipped with solenoid valve, integral mesh filter, quick-connect fittings, ½" (15mm) inlet, and ¾" (19mm) outlet. A built-in double check valve prevents potable water contamination. Can be mounted in any orientation for maximum flexibility.

Part Numbers

• J10-164 Jabsco 38245-4192: 12v Regular Bowl Salt Water
• J10-165 Jabsco 38245-4194: 24v Regular Bowl Salt Water
• J10-166 Jabsco 38245-4192: 12v Regular Bowl Fresh Water
• J10-167 Jabsco 38245-4194: 24v Regular Bowl Fresh Water

Specifications

• Regular Bowl
• Height 14.4" (365 mm)
• Width: 14.8" (375 mm)
• Depth: 18.9" (480 mm)
• Weight 38.6 lb (17.5 kg)
