Outils Magic-Mat Mast Ladder

OUTILS MAGIC-MAT MAST LADDER

The Magic-Mat Mast ladder is the easiest way to go aloft by yourself. The alternating steps and the platform at the top, reinforced with polyethylene, provides comfort and safety.

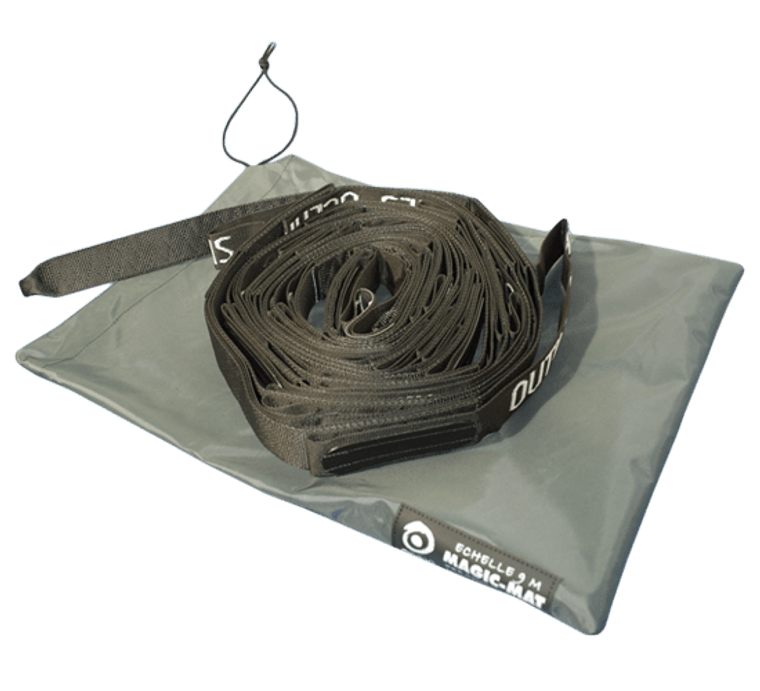

The Magic-Mat Mast ladder is available in length of 3, 7 or 9 meters and comes in a large bag. It is designed to be extended (2, 3 and 7 meters) and thus adapts to the height of your mast.

You can do all the work on your mast, change lights, work on spreaders, set a weathervane, with the additional equipment: work harness and fall protection.

Tips for using the Magic-Mat

• Attach the mainsail, spinnaker or genoa halyard to the eye at the top of the mast ladder (the side where there are two steps facing). Hoist the halyard with the mast ladder. Remove the twists.  Attach the eye at the bottom to the gooseneck or a fitting on the mast. Tension the halyard.
• To climb: hands around the mast, feet against the mast, push your body against your feet, once to the right and once to the left and so on. This requires a slight rotation of the body arround the mast. When the right foot pushes on the mast, you’re on the right side of the mast, when the left foot pushes on the mast you’re on the left side of the mast.
• At the masthead, wedge your feet in the steps, your back is supported by the harness, and both your hands are free to work. Your arms do not get tired as you’re above your work.
• Two complementary and essential accessories bring you the best security for working alone: the work harness and the fall protection. The fall protection is secured between a halyard and the harness : it limits your fall to 80 cm during your ascent and descent. This package allows you to sit in the harness as well as relax during your ascent and descent

FEATURES

• Mast ladder, fixation by shackle on loop
• Top of ladder with 2 parallel steps
• Rungs of 5 cm wide for 15cm long, reinforced by a batten
• 40 cm rungs spacing

MATERIALS

• Polyester weaving
• Polyethylene reinforcement batten

MAST LADDER & EXTENSION GUIDE

To choose the combination of mast ladder and extension necessary for your boat, you need the distance between the boom and the mast head (this distance corresponds to the «P»)

• P= 30 m = 1 mast ladder of  9 m + 3 extensions of 7 m
• P= 26 m = 1 mast ladder of  9 m + 2 extensions of 7 m + 1 extension of 3 m
• P= 25 m = 1 mast ladder of  9 m + 2 extensions of 7 m + 1 extension of 2 m
• P= 24 m = 1 mast ladder of  9 m + 1 extension of 7 m + 2 extensions of 3 m + 1extension of 2 m
• P= 23 m = 1 mast ladder of  9 m + 2 extensions of 7 m
• P= 22 m = 1 mast ladder of  9 m + 1 extension of 7 m + 2 extensions of 3 m
• P= 21 m = 1 mast ladder of  9 m + 1 extension of 7 m + 1 extension of 3 m + 1 extension of 2 m
• P= 20 m = 1 mast ladder of  9 m + 1 extension of 7 m + 2 extensions of 2 m
• P= 19 m = 1 mast ladder of  9 m + 1 extension of 7 m + 1 extension of 3 m
• P= 18 m = 1 mast ladder of  9 m + 1 extension of 7 m + 1 extension of 2 m
• P= 17 m = 1 mast ladder of 7 m + 1 extension of  7 m +1 extension of 3 m
• P= 16 m = 1 mast ladder of 9 m + 1 extension of 7 m
• P= 15 m = 1 mast ladder of  9 m + 2 extensions of 3 m
• P= 14 m = 1 mast ladder of  9 m + 1 extension of 3m + 1 extension 2 m
• P= 13 m = 1 mast ladder of  9 m + 2 extensions of 2 m
• P= 12 m = 1 mast ladder of  9 m + 1 extension of 3 m
• P= 11 m = 1 mast ladder of  9 m + 1 extension of 2 m
• P= 10 m = 1 mast ladder of  7 m + 1 extension of 3 m
• P= 9 m = 1 mast ladder of  9 m
• P= 8 m = 1 mast ladder of 3 m + 1 extension of 3 m + 1 extension 2 m

Add-on Options:

Work Harness

• Reference: HW
• Weight: 0.75 kg
• Material: Body made of polyethylene foam recovered with polyester. Polypropylene webbing, loops in polyamide carabiner in stainless steel.

Fall Protection

• Reference: AC
• Weight: 0.162 kg
• Material: Anti-chute made of aluminium
