Wichard U-Bolt Padeye Large (packs)

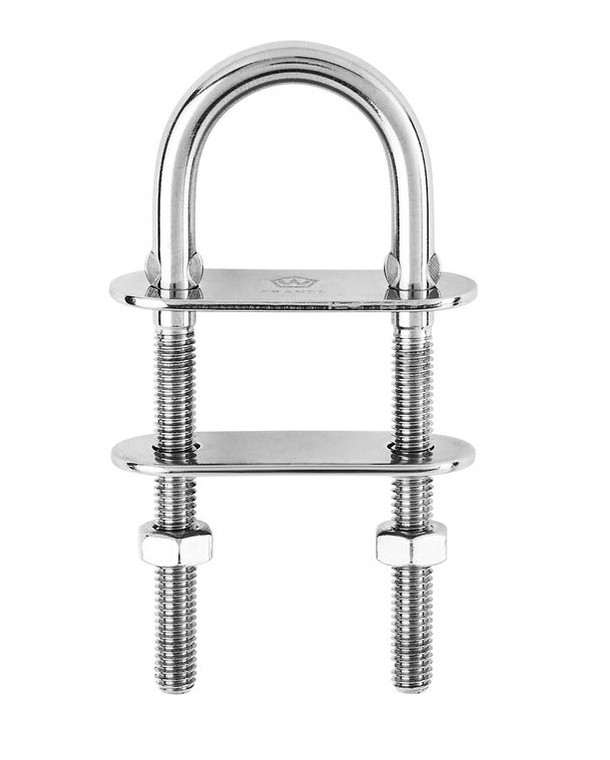

Wichard U-bolt pad eyes large
- Fully dropforged product with high quality stainless steel
- Outstanding working and breaking loads
- For any kind of fastening applications (shrouds, lilfelines, blocks)
- Delivered with bolts and counterplate
Applications
- Various fastening applications: shrouds, lifelines, blocks
Materials
- 316L stainless steel grade
Specifications
Part no. 6523: U-bolt pad eye - Dia: 6 mm - Length: 90 mm
- Max tightening torque: 7.5 Nm
- Length (mm): 90
- Working load (kg): 1280
- Breaking load (kg): 3000
- Weight (g): 67
- A (mm): 32
- B (mm): 27
- C (mm): 55
- D diameter (mm): 6
- L (mm): 90
Part no. 6524: U-bolt pad eye - Dia: 8 mm - Length: 100 mm
- Max tightening torque: 18 Nm
- Length (mm): 100
- Working load (kg): 2400
- Breaking load (kg): 4800
- Weight (g): 127
- A (mm): 36
- B (mm): 30
- C (mm): 60
- D diameter (mm): 8
- L (mm): 100
Part no. 6525: U-bolt pad eye - Dia: 10 mm - Length: 100 mm
- Max tightening torque: 36 Nm
- Length (mm): 110
- Working load (kg): 3600
- Breaking load (kg): 7000
- Weight (g): 222
- A (mm): 40
- B (mm): 32
- C (mm): 65
- D diameter (mm): 10
- L (mm): 110
Part no. 6526: U-bolt pad eye - Dia: 12 mm - Length: 130 mm
- Max tightening torque: 60 Nm
- Length (mm): 130
- Working load (kg): 6400
- Breaking load (kg): 10000
- Weight (g): 349
- A (mm): 44
- B (mm): 34
- C (mm): 70
- D diameter (mm): 12
- L (mm): 130
