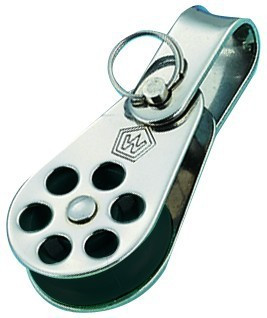

Wichard Stainless Steel Block Single Sheave 24 (30024)

Wichard Stainless Steel Block Single Sheave 24

Wichard
SKU:
30024-31224
|
UPC:
3587790300246
$23.20 - $55.75
(No reviews yet)
Current Stock:
Minimum Purchase:
2 units
Adding to cart… The item has been added
Description

WICHARD STAINLESS STEEL SINGLE BLOCK - SHEAVE 24

  • Complete range of stainless steel blocks for dinghies
  • Light weight, reliable and good performance
  • Available in a wide range of size and fastening systems

APPLICATIONS

  • For dinghies and catamarans: boom vang, trapeze retriever systems, cunningham, outhaul, control lines...
  • Low load applications on larger yachts

MATERIALS

  • Composite sheave
  • 316L stainless steel grade cheeks

SPECIFICATIONS

Part no. 30024: Stainless steel single block - Sheave 24 - with shackle

  • Rope size: 4
  • Length (mm): 56
  • Width (mm): 25
  • Thickness (mm): 15
  • Sheave diameter (mm): 24
  • Working load (kg): 200
  • Breaking load (kg): 500
  • Weight (g): 21

Part no. 30124: Stainless steel single block - Sheave 24 - with shackle & becket

  • Rope size: 4
  • Length (mm): 70
  • Width (mm): 25
  • Thickness (mm): 15
  • Sheave diameter (mm): 24
  • Working load (kg): 200
  • Breaking load (kg): 500
  • Weight (g): 26

Part no. 30224: Stainless steel single block - Sheave 24 - with V cleat shackle & becket

  • Rope size: 4
  • Length (mm): 70
  • Width (mm): 33
  • Thickness (mm): 15
  • Sheave diameter (mm): 24
  • Working load (kg): 200
  • Breaking load (kg): 500
  • Weight (g): 34

Part no. 30324: Stainless steel single block - Sheave 24 - V cleat & becket

  • Rope size: 4
  • Length (mm): 56
  • Width (mm): 33
  • Thickness (mm): 15
  • Sheave diameter (mm): 24
  • Working load (kg): 200
  • Breaking load (kg): 500
  • Weight (g): 28

Part no. 31124: Stainless steel block - Single - Sheave 24

  • Rope size: 4
  • Length (mm): 42
  • Width (mm): 25
  • Thickness (mm): 15
  • Sheave diameter (mm): 24
  • Working load (kg): 200
  • Breaking load (kg): 500
  • Weight (g): 14

Part no. 31224: Stainless steel block - Sheave 24 - Becket

  • Rope size: 4
  • Length (mm): 56
  • Width (mm): 25
  • Thickness (mm): 15
  • Sheave diameter (mm: 24
  • Working load (kg): 200
  • Breaking load (kg): 500
  • Weight (g): 14
