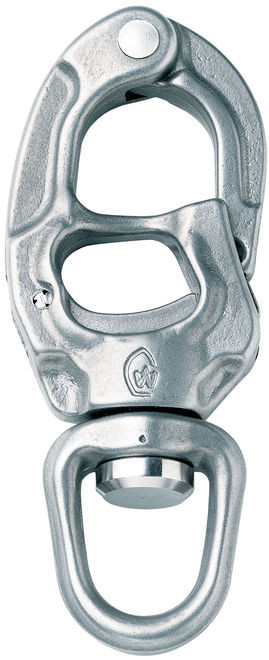

Wichard Speedlink Trigger Snap Shackle - Universal Eye

Wichard Speedlink Trigger Snap Shackle - Universal Eye/Webbing Eye

Wichard
SKU:
2650
|
UPC:
3587790026504
$208.25
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Wichard Trigger Snap Shackle Speedlink (2650-2756)

Speedlink is the new trigger snap shackle dedicated to spinnaker operations on racing boats and offering an excellent weight / performance ratio.

  • Ultra lightweight: developed by using finite element analysis software, Speedlink has an optimised design thanks to its shape, cut-outs and ribs. Its make it extremely design and gives its one of the best strength/weight ratios on the market.
  • Easy opening: opening under load, whether manually or using release fid, is easy and effortless thanks to the generous passage diameter and its optimised slopes.
  • No accidental opening: the special shape of the latch reduces inertia and avoids unintentional opening, especially under impact.
  • Sturdy: Speedlink is forged in HR stainless steel and can bear outstanding working and breaking loads for a minimum weight.
  • Modern design: its ultra-technical lines avoid excessive rope wear and prevent adjacent lines from jamming.

APPLICATION

  • (Universal Eye) Spinnaker operations: sheets, halyards, peeling
  • (Webbing Eye) Foresail tack points.

MATERIAL

  • HR stainless steel 17.4 PH

SPECIFICATIONS

Part no. 2650 (Universal Eye)

  • Length (mm) 74
  • Working load (kg) 1100
  • Weight (g) 59
  • A (mm) 14
  • B (mm) 11.5

Part no. 2652 (Universal Eye)

  • Length (mm) 87
  • Working load (kg) 1440
  • Weight (g) 97
  • A (mm) 17
  • B (mm) 15.5

Part no. 2654 (Universal Eye)

  • Length (mm) 108
  • Working load (kg) 2320
  • Weight (g) 173
  • A (mm) 21
  • B (mm) 22

Part no. 2656 (Universal Eye)

  • Length (mm) 134
  • Working load (kg) 4300
  • Weight (g) 326
  • A (mm) 25
  • B (mm) 26

Part no. 2750 (Webbing Eye)

  • Length (mm) 72
  • Working load (kg) 1100
  • Weight (g) 58
  • A (mm) 14
  • B (mm) 11
  • C (mm) 23

Part no. 2752 (Webbing Eye)

  • Length (mm) 83
  • Working load (kg) 1440
  • Weight (g) 95
  • A (mm) 17
  • B (mm) 13
  • C (mm) 26

Part no. 2754 (Webbing Eye)

  • Length (mm) 102
  • Working load (kg) 2320
  • Weight (g) 174
  • A (mm) 21
  • B (mm) 17
  • C (mm) 35

Part no. 2756 (Webbing Eye)

  • Length (mm) 128
  • Working load (kg) 4300
  • Weight (g) 337
  • A (mm) 25
  • B (mm) 21
  • C (mm) 59
