Wichard Snap Shackles Without Swivel with Female Thread (72473-72477)

Wichard Snap Shackles Without Swivel with Female Thread

Wichard
SKU:
72473-72477W
|
UPC:
3587790724738
$77.48 - $192.95
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

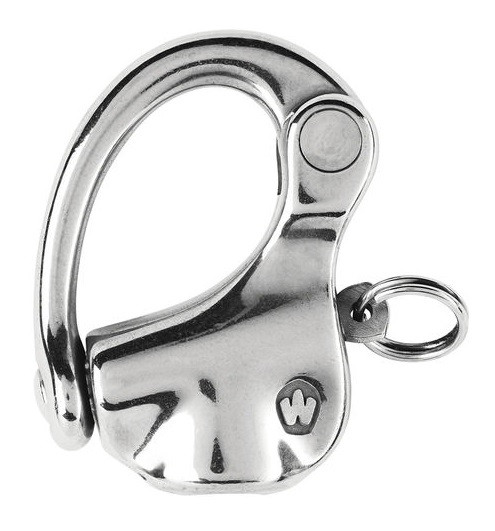

Wichard HR snap shackle - Without swivel - Female thread

  • HR Forged snap shackle (Grade 17.4 ph stainless steel) without swivel (with female thread)
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possiblity to attach a lanyard)

Applications

  • Use for assembly applications
  • blocks, babystay adjusters, attachament for flying sails furlers…

Specifications

Part no. 72473: HR snap shackle - Without swivel - Length: 45 mm - Female thread M7*75

  • Materials: HR 17.4 PH stainless steel grade
  • Length (mm): 45
  • Weight (g): 42
  • A (mm): 16
  • B (mm): M7*75

Part no. 72475: HR snap shackle - Without swivel - Length: 60 mm - Female thread M9*75

  • Materials: HR 17.4 PH stainless steel grade
  • Length (mm): 60
  • Weight (g): 96
  • A (mm): 21
  • B (mm): M9*75

Part no. 72477: HR snap shackle - Without swivel - Length: 80 mm - Female thread M12*1

  • Materials: HR 17.4 PH stainless steel grade
  • Length (mm): 80
  • Weight (g): 222
  • A (mm): 26
  • B (mm): M12*100
