Wichard Double Folding Padeye
Please note: This item on Pre-Order basis. Release date is November 2024.

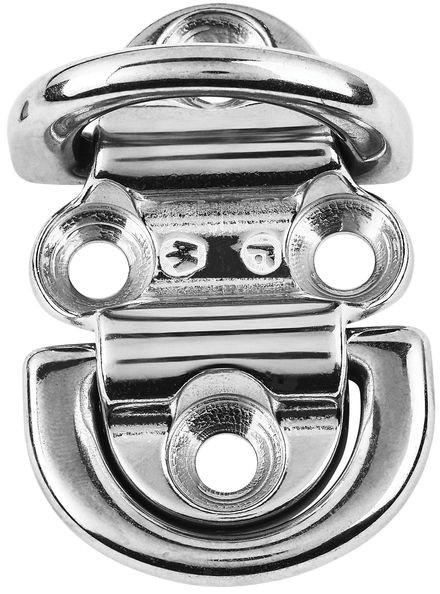

Wichard double folding pad eyes
- Fully dropforged product with outstanding working and breaking loads regardless the angle of the load
- Perfect solution attachment (stay, blocks, jib tack point)
- Possibility to attach several stays
- Modern and optimized design to suit aesthetics of modern boats
- They can be fold down to minimize the risk of injuries
- The silicon pad eliminates moise and unpleasant vibrations
Applications
- For any fastening/attachment application
- Allows to attach several shrouds
Materials
- 316L stainless steel grade
Specifications
Part no. 6564: Double folding pad eye - Dia 6 mm
- Working load (kg): 1440
- Breaking load (kg): 2500
- Weight (g): 126
- A (mm): 45
- B (mm): 27
- C (mm): 14
- d diameter (mm): 6.4
- D diameter (mm): 6
- E (mm): 75
- F (mm): 59
Part no. 6565: Double folding pad eye - Dia 8 mm
- Working load (kg): 2400
- Breaking load (kg): 4300
- Weight (g): 252
- A (mm): 59
- B (mm): 35
- C (mm): 17
- d diameter (mm): 8.5
- D diameter (mm): 8
- E (mm): 81
- F (mm): 59
Part no. 6566: Double folding pad eye - Dia 10 mm
- Working load (kg): 4560
- Breaking load (kg): 9000
- Weight (g): 494
- A (mm): 75
- B (mm): 45
- C (mm): 23
- d diameter (mm): 10.5
- D diameter (mm): 10
- E (mm): 104
- F (mm): 78
