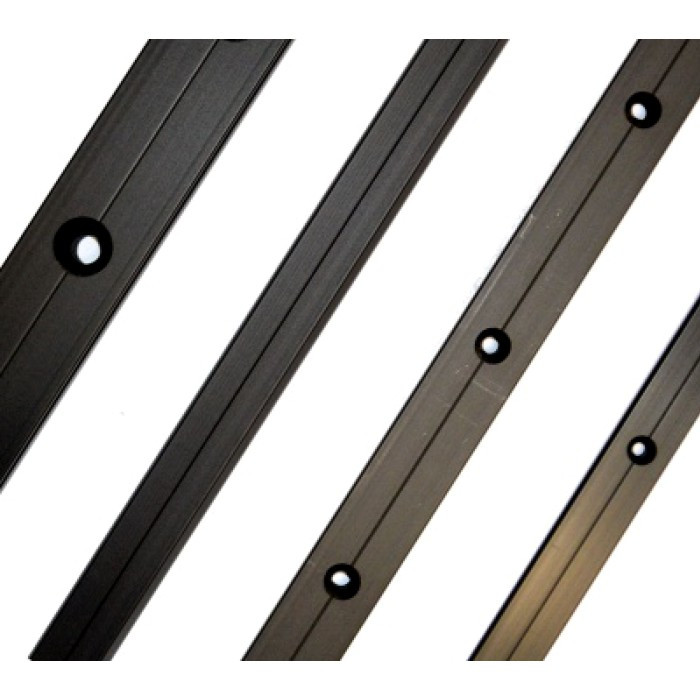

Selden System 22 Tracks, Sliding Bolt (442-003-04 to 442-003-08)

Selden System 22 Tracks, Sliding Bolt

Selden
SKU:
S442-003-04 to S442-003-08
$159.82 - $259.14
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

System 22 is based on a 22 mm track and used for keelboats and yachts up to approximately 33’.

Ideal for the retrofit upgrades as the fasteners can be located according to the existing bolt holes.  Also used when the bolts are to be hidden.

Part# 442-003-04 - TRACK, SYSTEM 22, SLIDING BOLT, L=2000

  • Weight: 904.00 g
  • System: 22
  • Profile: Slidingbolt
  • Length: 2000 mm
  • Comment: Max bolt spacing, c-c (mm) = 100
  • Fasteners: Sealing washer 164-481 + M5 bolt
  • Type: Straight

Part# 442-003-06 - TRACK, SYSTEM 22, SLIDING BOLT, L=3000

  • Weight: 1356.00 g
  • System: 22
  • Profile: Slidingbolt
  • Length: 3000 mm
  • Comment: Max bolt spacing, c-c (mm) = 100
  • Fasteners: Sealing washer 164-481 + M5 bolt

Part# 442-003-08 - TRACK, SYSTEM 22, SLIDING BOLT, L=4000

  • Weight: 1808.00 g
  • System: 22
  • Profile: Slidingbolt
  • Length: 4000 mm
  • Comment: Max bolt spacing, c-c (mm) = 100
  • Fasteners: Sealing washer 164-481 + M5 bolt
