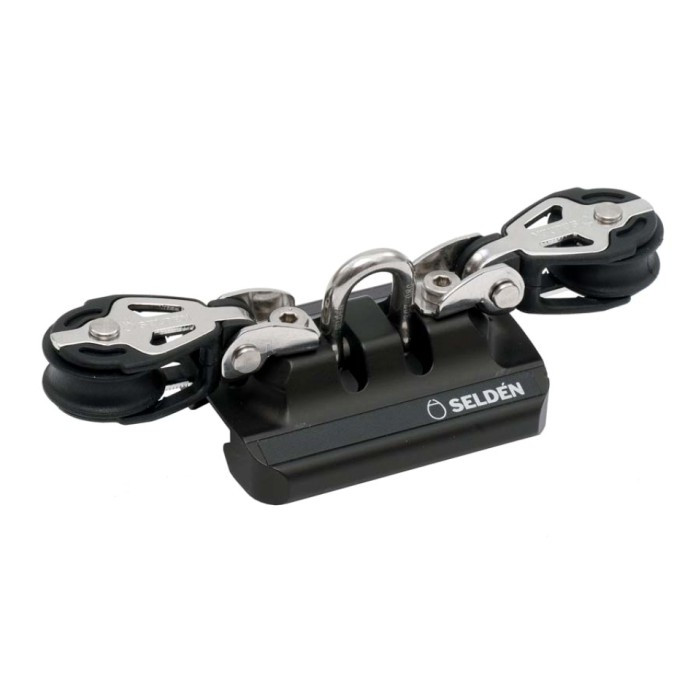

Part# 441-101-01 - MAIN SHEET CAR/TOGGLE , SYSTEM 15

Selden System 15 Main Sheet Cars

Selden
SKU:
S441-101-01 to S441-101-04
$213.02 - $286.04
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

System 15 is based on a 15 mm track and used for dinghies and small keelboats up to approximately 22 feet.

Technical Features System 15

  • The cars are black anodised, extruded aluminium. They run on Torlon ball bearings.
  • AISI 316 stainless shackles suit BBB 30 and BBB 40 blocks.
  • Car 441-101-02 has an integrated shackle that connects directly to the swivel post of the block.

Part# 441-101-01 - MAIN SHEET CAR, TOGGLE, 2:1, SYSTEM 15

  • Weight: 80.00 g
  • Safe working Load: 120 kg
  • Breaking Load: 400 kg
  • Length: 112 mm
  • Width: 42 mm
  • Purchase: 2 (N:1)
  • Max line size: 6 mm
  • Comment: Toggle fits BBB30 403-101-16

Part# 441-101-02 - MAIN SHEET CAR, BLOCK, 2:1, SYSTEM 15

  • Weight: 106.00 g
  • Safe working Load: 120 kg
  • Breaking Load: 400 kg
  • Length: 112 mm
  • Width: 42 mm
  • Purchase: 2 (N:1)
  • Max line size: 6 mm
  • Comment: Main sheet block BBB30, control block BBB20

Part# 441-101-03 - MAIN SHEET CAR, TOGGLE, BRACKET, 1:1, SYSTEM 15

  • Weight: 57.00 g
  • Safe working Load: 120 kg
  • Breaking Load: 400 kg
  • Length: 68 mm
  • Width: 42 mm
  • Comment: Toggle fits BBB30 403-101-16

Part# 441-101-04 - MAIN SHEET CAR, TOGGLE, SYSTEM 15

  • Weight: 48.00 g
  • Safe working Load: 120 kg
  • Breaking Load: 400 kg
  • Length: 57 mm
  • Width: 42 mm
  • Comment: Toggle fits BBB30 403-101-16
