Selden Roller Bearing Blocks 60mm Single
Selden
$399.30 - $446.12
(No reviews yet)
Write a Review
Selden

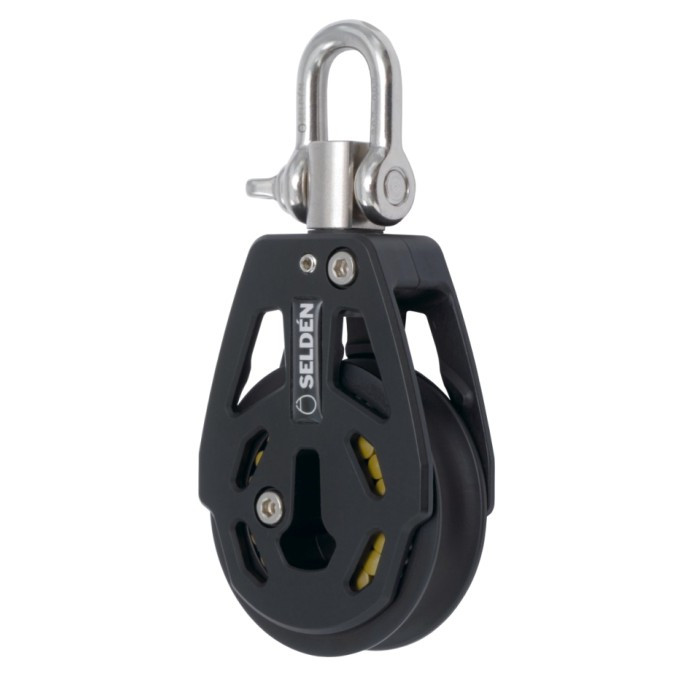

Selden Roller Bearing Blocks 60mm Single
Low resistance at high, dynamic loads is the main characteristic of Seldén Roller Bearing Blocks (RBB). The ability to easily release a highly loaded backstay tackle, a main sheet, a spinnaker halyard or a kicker tackle makes for fast, safe and uncomplicated maneuvers. You will find yourself focusing on what really matters - Boat speed.
FEATURES
- Torlon rollers
- Insulating washer
- Acetal ball bearings stabilize the sheave when subjected to side loads
- Machined, black anodised aluminium sheave
SHACKLE DETAILS
- RBB60: 6 mm body
- Set screw. Switching from swiveling to fixed shackle.
- Machined, black anodised aluminium cheeks.
- Swivel pin is hollow to reduce weight
- RBB60: 8 mm pin
TECHNICAL FEATURES
- Designed for high load, dynamic applications.
- Machined, black anodised aluminium cheeks and Torlon® roller bearings.
- PA washer insulates stainless from aluminium to prevent corrosion.
- The shackle features a Ø 6 mm body and Ø 8 mm pin, a strong and lightweight combination.
- The swivel pin is hollow and chamfered to reduce weight.
- Acetal ball bearing stabilize the sheave when subjected to side loads.
SPECIFICATIONS
Part# 406-201-01R - RBB60 SINGLE
- Weight: 209.00 g
- Safe working Load: 1500 kg
- Breaking Load: 3000 kg
- Max line size: 12 mm
- Pin diam: 8 mm
- Shackle diam: 6 mm
- System: RBB60
- Block type: single
Part# 406-201-02R - RBB60 SINGLE/BECKET
- Weight: 222.00 g
- Safe working Load: 1500 kg
- Breaking Load: 3000 kg
- Max line size: 12 mm
- Pin diam: 6 mm
- Shackle diam: 8 mm
- System: RBB60
- Block type: single, becket
Part# 406-201-03R - RBB60 SINGLE, BACKSTAY/HALYARD
- Weight: 147.00 g
- Safe working Load: 1500 kg
- Breaking Load: 3000 kg
- Max line size: 12 mm
- Pin diam: 8 mm
- Shackle diam: mm
- System: RBB60
- Block type: single
