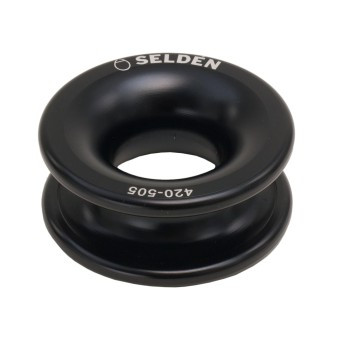

LOW FRICTION RINGS
A low friction ring is a simpler and lighter alternative to a plain bearing block.
- Produced in black anodised aluminium
- Big inner radius for low friction
- Outer slot for attachment of a line or rubber cord
- Suitable applications are backstay cascades, barber haulers, kicker tackles or any other applications with static load.
BARBER HAULING WITH LOW FRICTION RINGS - ”Barber hauling” the jib means you pull the clew to windward to increase the pressure on the leech. Fixing the line in a pad eye abaft the mast makes for a 2:1 purchase and by leading the line to windward, an efficient and easy accessible trim device is obtained. A rubber cord fitted from the low friction ring to the shroud prevents an unloaded ring to chafe on the coach side.
SPECIFICATIONS
420-500: LOW FRICTION RING ø12/5-5 AL
- Weight: 1.00 g
- Diam. outer: 12 mm
- Diam. inner: 5 mm
- Safe working load: 150 kg
- Breaking load: 300 kg
- Max line size: 3 mm
420-501: LOW FRICTION RING ø18/8-9 AL
- Weight: 2.00 g
- Diam. outer: 18 mm
- Diam. inner: 8 mm
- Safe working load: 350 kg
- Breaking load: 700 kg
- Max line size: 5 mm
420-502: LOW FRICTION RING ø25/11-11 AL
- Weight: 6.00 g
- Diam. outer: 25 mm
- Diam. inner: 11 mm
- Safe working load: 750 kg
- Breaking load: 1500 kg
- Max line size: 7 mm
420-503: LOW FRICTION RING ø35/16-15 AL
- Weight: 12.00 g
- Diam. outer: 35 mm
- Diam. inner: 16 mm
- Safe working load: 1500 kg
- Breaking load: 3000 kg
- Max line size: 10 mm
420-504: LOW FRICTION RING ø50/22-22 AL
- Weight: 47.00 g
- Diam. outer: 50 mm
- Diam. inner: 22 mm
- Safe working load: 3000 kg
- Breaking load: 6000 kg
- Max line size: 14 mm
420-505: LOW FRICTION RING ø70/30-30 AL
- Weight: 108.00 g
- Diam. outer: 70 mm
- Diam. inner: 30 mm
- Safe working load: 6000 kg
- Breaking load: 12000 kg
- Max line size: 20 mm
