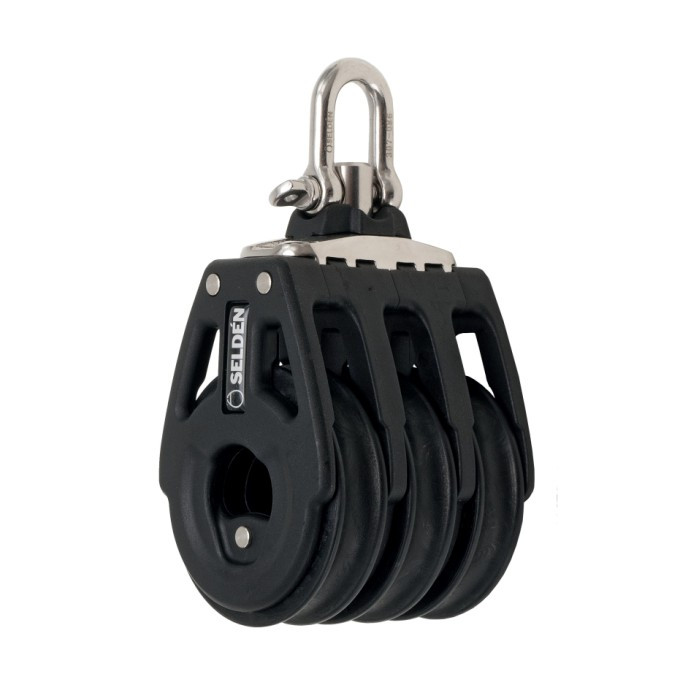

Selden Ball Bearing Blocks 60mm Triple (406-601-06R)

Selden Ball Bearing Blocks 60mm Triple

Selden
SKU:
S406-601-06R to S406-601-09R
$245.27 - $381.85
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Ball bearing blocks are used where the loads are more moderate and dynamic.  The ball bearings provide for good sheave rotation with the lowest possible friction.

Delrin version with Delrin ball bearings is a low weight alternative for moderate loads.

Technical Features BBB60

  • Ø5 mm Derlin ball bearings and Ø60 mm Acetal sheave.
  • Cheeks made of glass fibre reinforced composite.

Specifications

Part# 406-601-06R - BBB60 TRIPLE

  • Weight: 306.00 g
  • Safe working Load: 1000 kg
  • Breaking Load: 2000 kg
  • Max line size: 10 mm
  • Pin diam: 5 mm
  • Shackle diam: 5 mm
  • System: BBB60
  • Block type: triple

Part# 406-601-07R - BBB60 TRIPLE BECKET

  • Weight: 316.00 g
  • Safe working Load: 1000 kg
  • Breaking Load: 2000 kg
  • Max line size: 10 mm
  • Pin diam: 5 mm
  • Shackle diam: 5 mm
  • System: BBB60
  • Block type: triple, becket

Part# 406-601-08R - BBB60 TRIPLE CAM

  • Weight: 470.00 g
  • Safe working Load: 600 kg
  • Breaking Load: 1200 kg
  • Max line size: 10 mm
  • Pin diam: 5 mm
  • Shackle diam: 5 mm
  • System: BBB60
  • Block type: triple, cam

Part# 406-601-09R - BBB60 TRIPLE BECKET CAM

  • Weight: 471.00 g
  • Safe working Load: 720 kg
  • Breaking Load: 1440 kg
  • Max line size: 10 mm
  • Pin diam: 5 mm
  • Shackle diam: 5 mm
  • System: BBB60
  • Block type: triple, becket, cam
