RWB Gebo Standard Range Deck Hatches WITHOUT Flange (RWB6020-RWB6031)

RWB Gebo Standard Range Deck Hatches WITHOUT Flange

RWB
SKU:
RWB6020-RWB6031
|
UPC:
9324608030582
$607.00 - $1,614.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Please note: RWB6029 is on backorder until 20 December 2024

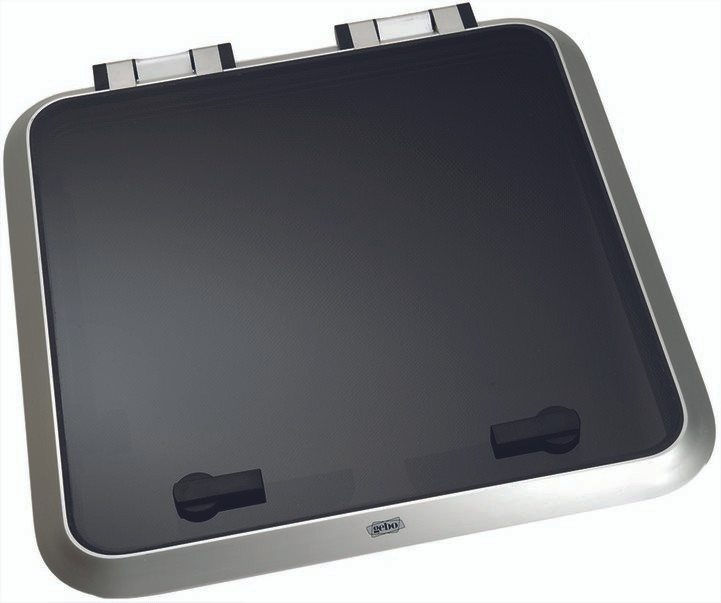

Gebo Standard Range Deck Hatches WITHOUT Flange

The GEBO standard range of hatches are GEBO's traditional premium range of hatches. They have a smooth on-deck profi le and the frame has been extended to fit flush against the base mounting. A deep groove in the lower frame keeps water from coming in when the hatch is open.
These hatches have NO internal in-deck flange. They fit flush on deck.

FEATURES

  • Made from marine grade anodised aluminium giving long life, excellent corrosion resistance, durability and low maintenance requirements
  • All GEBO hatches are CE class-A ocean certified
  • 2 year warranty under normal use
  • 40mm height above deck. Silicone rubber seals
  • 2 styles - Internal flange 5mm deep - or NO flange style
  • Durable 10mm to 15mm thick smoked grey acrylic panels
  • Heavy duty no-snag adjustable friction hinges hold the hatch open in any position up to 180 deg, including a fully locked ventilation position
  • Not a single catch, lip or knob for sails or rope lines to get caught on
  • Inside / outside opening handles with sturdy blue locking button
  • All hinges and metal parts are made from non-corrosive materials
  • Mosquito/fly screens, inner dress rims and spare parts available
  • Hatches WITHOUT flange have a 30mm cut-out radius (except 6033)

NB: Category A – Ocean: covers largely self-sufficient boats designed for extended voyages with winds of over Beaufort Force 8 (over 40 knots), and significant wave heights above 13 feet, but excluding abnormal conditions such as hurricanes.

SPECIFICATIONS

SKU Cutout Size mm Cutout Radius Overall Size mm Acrylic Thickness Mosquito Screen Inner Rim Alum. Fly-Bind Combo
RWB6020 200 x 200 30mm 260 x 260 10mm RWB6130 RWB6205
RWB6021 260 x 260 30mm 320 x 320 10mm RWB6131 RWB6206
RWB6022 325 x 185 30mm 385 x 245 10mm RWB6132 RWB6207
RWB6023 341 x 196 30mm 401 x 256 10mm RWB6133 RWB6208
RWB6024 410 x 410 30mm 470 x 470 10mm RWB6134 RWB6209
RWB6025 450 x 320 30mm 510 x 380 10mm RWB6135 RWB6210 RWB6100
RWB6026 451 x 451 30mm 511 x 511 10mm RWB6136
RWB6027 500 x 370 30mm 560 x 430 10mm RWB6137 RWB6211 RWB6101
RWB6028 500 x 500 30mm 560 x 560 10mm RWB6138 RWB6212 RWB6102
RWB6029 620 x 620 30mm 680 x 680 15mm RWB6139 RWB6213 RWB6103
RWB6030 800 x 800 30mm 860 x 860 15mm RWB6140 RWB6214
RWB6031 900 x 900 30mm 960 x 960 15mm
