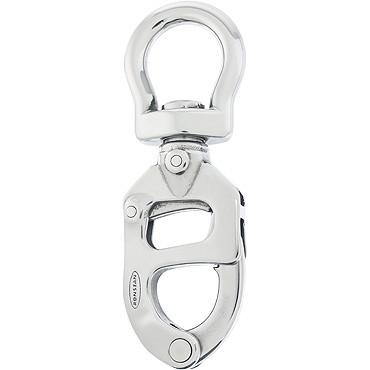

Ronstan Triggersnap Shackle, Large Bail, 123mm
Ronstan
$246.61
(No reviews yet)
Write a Review
Ronstan
Ronstan Triggersnap Shackle, Large Bail, 123mm
RF7320: SERIES 300 TRIGGERSNAP™ SHACKLE WITH LARGE BAIL
High strength-to-weight ratio stainless steel trigger release snap shackle with large swivel bail.
FEATURES
- High strength-to-weight ratio.
- Individually proof-load tested.
- Stamped with a production code for traceability.
- Heat treated, investment cast 15.5PH stainless steel for high strength and corrsion resistance.
- Small and large bail options.
- Use the aluminium spike to release easily while under load.
SPECIFICATIONS
- B.L. (kg) 4800
- M.W.L. (kg) 2400
- Weight (g) 194
- A (mm) 19
- B (mm) 25
- C (mm) 123
MATERIALS
- Grade 316 stainless steel rivets and spring.
- Heat treated grade 15-5PH investment cast stainless steel body, bail, latch and trigger.
PRODUCT INFORMATION
TRIGGERSNAPS
Ronstan’s range of trigger released snap shackles features a latch mechanism for quick and intuitive one-handed operation. Release under load is easily accomplished by using a spike (available as RF1322) to safely actuate the trigger.
Heat treated, investment cast 15-5PH stainless steel components offer high strength and excellent corrosion resistance. Additionally, every Ronstan Triggersnap™ is individually proof-load tested and stamped with a production code for traceability.
The full Triggersnap™ offering is suitable for a wide range of applications, available in three sizes and with both large and small swivel bail options.
