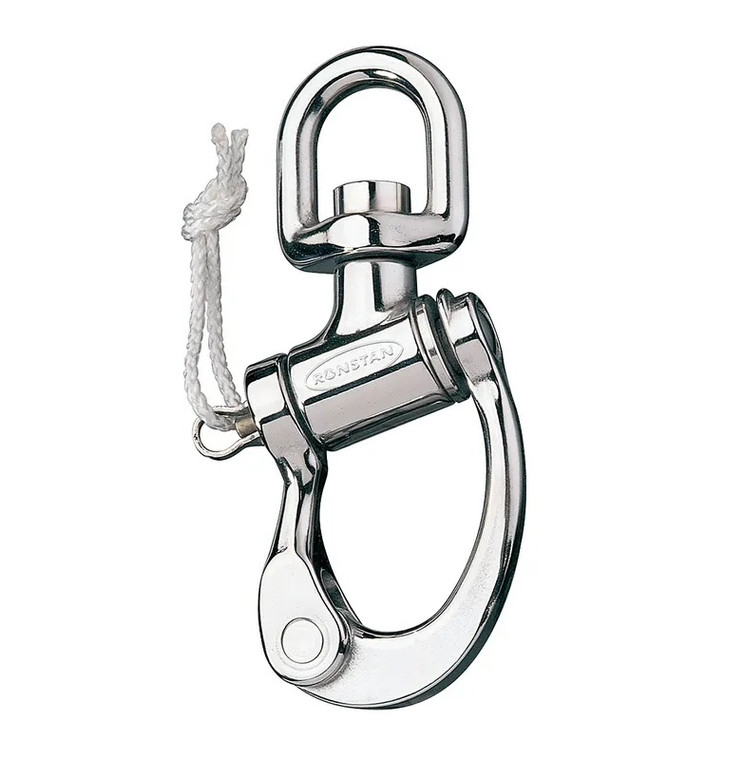

Ronstan Swiveling Small Bail Trunion Snap Shackle 150mm (RF6511)

Ronstan Swiveling Small Bail Trunion Snap Shackle 150mm

Ronstan
SKU:
RF6511
|
UPC:
9316800222674
$308.67
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF6511: SWIVELING SMALL BAIL TRUNION SNAP SHACKLE 150mm
Stainless Steel, Swiveling Small Bail Trunion Snap Shackle, 150mm

FEATURES

  • Can move in two planes (pivot and swivel) to maintain optimum articulation

SPECIFICATIONS

  • B.L. (kg) 7500
  • M.W.L. (kg) 3750
  • Weight (g) 454
  • Yield Load (kN) 13970
  • A (mm) 36.0
  • B (mm) 22.0
  • C (mm) 150.0
  • D (mm) 150.0

PRODUCT INFORMATION

  • Designed to maintain correct load orientation in applications where shackle movement might be restricted when attached to perforated toe rails, low profile pad eyes. Suits RF6561 replacement plunger pin kit.

MATERIALS

  • Grade 15-5PH investment cast stainless steel body, hasp and bail.
  • Grade 316 stainless steel plunger pin and spring.
