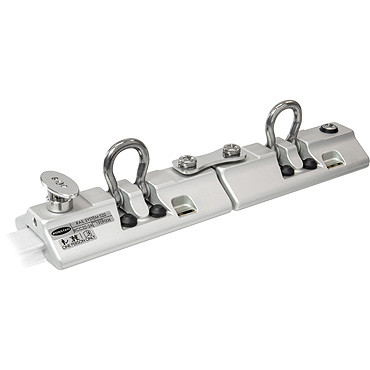

Ronstan Series 22 Twin Car, Silver, Certified Rail System
Ronstan
$1,410.64
(No reviews yet)
Write a Review
Ronstan
Ronstan Series 22 Twin Car, Silver, Certified Rail System
RCC22-2A: SERIES 22 SAFETY RAIL TANDEM CAR WITH PLUNGER STOP, SILVER
Certified to European Standard EN795-2012 Type D and Australian Standard AS1891.2.2001, Part 2
FEATURES
- Certified to meet European Standard EN795:2012 Type D.
- Marine grade aluminium alloy cars, track rails and end stops, anodised for corrosion protection and long service life.
- Recirculating Torlon® ball bearings for free running, low friction performance and low maintenance.
- Grade 316 forged stainless steel pivoting shackles for lanyard attachment.
- Rubber buffers for reduced vibration and to lift pivoting shackles away from car body for quick access.
- Spring-loaded stainless steel plunger for simple, positive re-positioning at stop locations.
- Can be locked in the disengaged position to allow free movement along the track rail.
- The elliptical knob is easy to grip and turn, and indicates clearly whether the plunger is engaged or not.
- The track rail can be mounted in either a vertical or horizontal plane.
SPECIFICATIONS
- M.W.L. (kg) 100*
- Weight (g) 504
- Length (mm) 254
- Width (mm) 58
APPLICATIONS
- This system provides a method of attachment for use in conjunction with personal protection equipment to protect against falls from a height, such as when working outside of conventional guardrails for cleaning and maintenance purposes. It shall not be used for lifting equipment or for any other purpose.
MATERIALS
- Torlon® ball bearings
- Anodised aluminium car bodies and track
- Grade 316 shackle, plunger stop, pivot pin, fasteners and connector plate
