Nodus Factory High Load Multi-Purpose Shackle

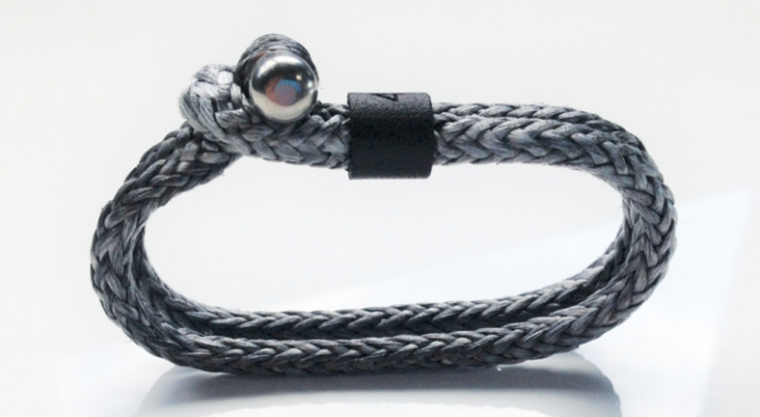

The multi-purpose High Load M® shackle made of Dyneema® is a soft shackle for heavy loads. Ideal as a soft shackle for mainsail foot, pulleys, low-friction rings, running backstays, baby stays, etc. This product features both core and sheath.
Features
- Multi-purpose, high-load soft shackle
- Easy to use
- Close with the Cap® knot
- Rapid opening even after heavy load
- Ideal soft shackle for optimizing your boat’s performance
- Reliable, maintenance-free
Specifications
- T-bône® Shackle, Titanium TI 6 “Eco Ti” available in several sizes
- Soft shackle, core and sheath 100% Dyneema® R2 12fx pre-stretched, coated; light grey / black
- Resistance certified by Veritas
Advantages
- Flexible soft shackle, to ensure perfect in-axis loading
- Safe blocking loaded and unloaded Very UV-resistant
- Excellent chafe resistance
- Reliable, maintenance-free
| Product Code | Rope | Breaking Load | Small | Medium | Large | Line Ø Dyneema R2 |
| M6HL | Ø 2.5 | 1550 daN | 4.5 cm | 9 cm | 10 cm | 4/9 mm |
| M8HL | Ø 3 | 2150 daN | 4.5 cm | 9 cm | 10 cm | 5/10 mm |
| M10HL | Ø 4 | 3250 daN | 5.5 cm | 9.5 cm | 11 cm | 7/13 mm |
| M12HL | Ø 5 | 4550 daN | 6 cm | 10 cm | 12 cm | 9/15 mm |
| M14HL | Ø 6 | 6850 daN | 6 cm | 10 cm | 12 cm | 10/22 mm |
