Harken Micro Cam Base - Swivel, 16 mm Sheaves
Harken
$238.23
(No reviews yet)
Write a Review
Harken
Harken Micro Cam Base - Swivel, 16 mm Sheaves
This is a Special Order item. Estimated delivery lead time is 3-4 weeks.

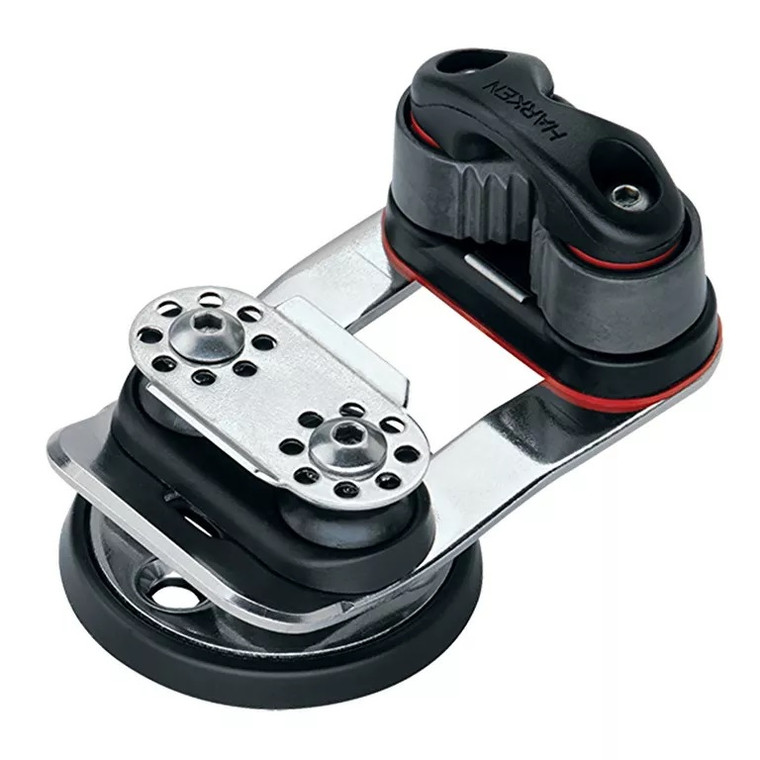

The 9051 adjustable cam swivel base with 468 Micro Cam-Matic cleat provides precise cleating. The cleating angle adjusts infinitely in a 5-17 degree range up and down for optimal line lead. The 16 mm sheaves feature low-friction stainless steel ball bearings to handle high loads, ideal for controls where cleating angles change dramatically.
Part no. 9051: Micro Cam Base - Swivel, 16 mm Sheaves
Specifications
- Height (mm) 60 mm
- Height (in) 2 3/8 in
- Weight (g) 173 g
- Weight (oz) 6.1 oz
- Maximum line Ø (mm) 6 mm
- Maximum line Ø (in) 1/4 in
- Fasteners (mm) M5 mm
- Fasteners (in) #10 in
- Maximum working load (kg) 91 kg
- Maximum working load (lb) 200 lb
- Minimum line Ø (mm) 3 mm
- Minimum line Ø (in) 1/8 in
- Fastener spacing (mm) 26 mm
- Fastener spacing (in) 1 1/32 in
- Cam angle adjustment 5 - 17°
