Harken 64mm End Control - Footblock, Becket
Harken
$2,153.83
(No reviews yet)
Write a Review
Harken
Harken 64mm End Control - Footblock, Becket
This is a Special Order item. Delivery lead time may take 2 or more weeks.
64 mm Maxi travelers bring the ease of dinghy traveler adjustment to large offshore boats. Cars ride on two rows of recirculating Torlon® ball bearings and roll freely under high, nonvertical loads. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.

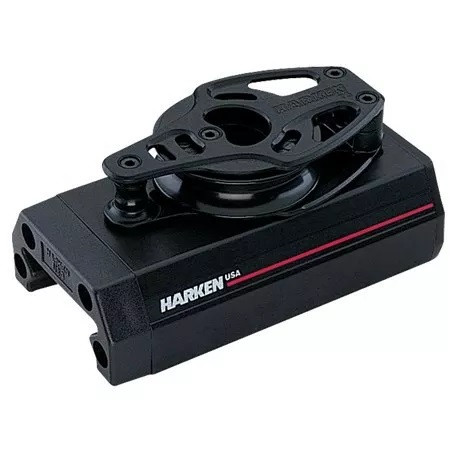

Part No. 3071: 64mm End Control - Footblock, Becket
Specifications
- Height (in) 3 3/8 in
- Length (in) 7 1/8 in
- Sheave Ø (mm) 75 mm
- Sheave Ø (in) 2 15/16 in
- Length (mm) 181 mm
- Width (mm) 95 mm
- Width (in) 3 3/4 in
- Weight (g) 1596 g
- Weight (oz) 56 oz
- Maximum working load (kg) 2380 kg
- Maximum working load (lb) 5250 lb
- Breaking load (kg) 4762 kg
- Breaking load (lb) 10500 lb
- Height (mm) 86 mm
- Use with track/rail 661
Resources/References:
Need help to design your Harken system - take a look here for the Harken System Diagrams
And here for Harken Manuals & Support Information
