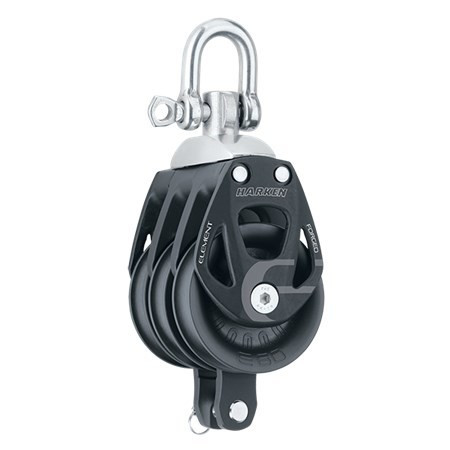

Harken 60mm Aluminum Element Triple Block - Swivel, Becket
Harken
$448.28
(No reviews yet)
Write a Review
Harken
Harken 60mm Aluminum Element Triple Block - Swivel, Becket
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.
Part no. 6273
Specifications
- Sheave Ø (mm) 60 mm
- Sheave Ø (in) 2 3/8 in
- Length (mm) 165 mm
- Length (in) 6 1/2 in
- Weight (g) 540 g
- Weight (oz) 18.9 oz
- Shackle pin Ø (mm) 8 mm
- Shackle pin Ø (in) 5/16 in
- Maximum line Ø (mm) 14 mm
- Maximum line Ø (in) 9/16 in
- Maximum working load (kg) 1650 kg
- Maximum working load (lb) 3638 lb
- Breaking load (kg) 3300 kg
- Breaking load (lb) 7276 lb
