Harken 57mm Single Ratchet Block - with 093 U-Adapter (HSB429)

Harken 57mm Single Ratchet Block - with 093 U-Adapter

Harken
SKU:
HSB429
|
UPC:
097653153788
$194.26
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item.  Estimated delivery lead time is 3-4 weeks.

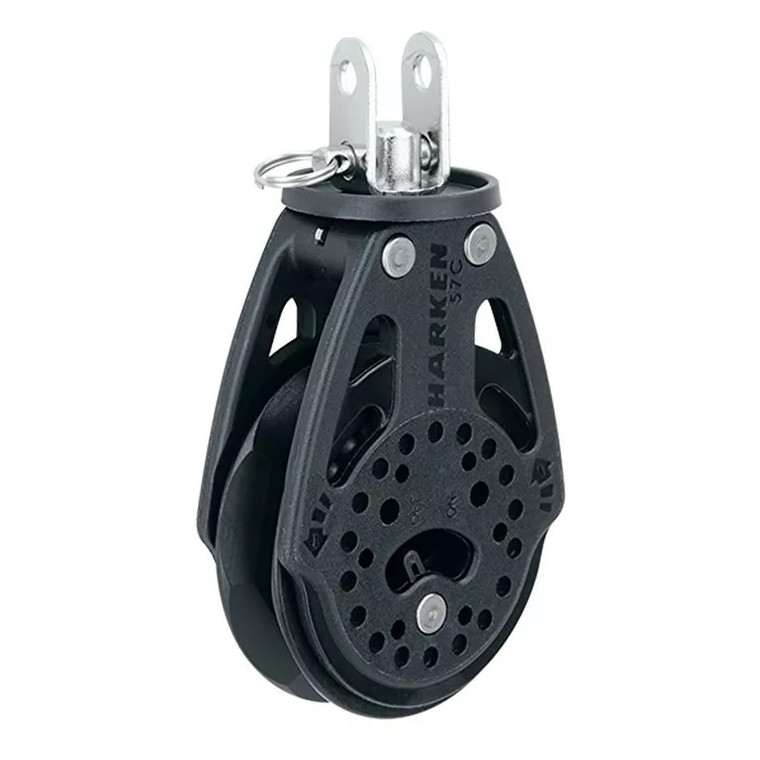

This block is the 57 mm switchable Carbo ratchet (black sheave for 10X holding power) mated to our U-Adapter part number 093. The combination allows attachment of the block to a swivel bases or to other blocks with 10 mm posts.

Part no. HSB429: 57mm Single Ratchet Block - with 093 U-Adapter

Specifications

  • Sheave Ø (mm) 57 mm
  • Sheave Ø (in) 2 1/4 in
  • Length (mm) 103 mm
  • Length (in) 4 1/16 in
  • Weight (g) 85 g
  • Weight (oz) 3 oz
  • Maximum line Ø (mm) 10 mm
  • Maximum line Ø (in) 3/8 in
  • Maximum working load (kg) 227 kg
  • Maximum working load (lb) 500 lb
  • Breaking load (lb) 2000 lb
  • Breaking load (kg) 907 kg
  • Shackle pin Ø (mm) 5 mm
  • Shackle pin Ø (in) 3/16 in
  • Holding power 10:1



References/Resources:

Need help to design your Harken system - take a look here for the Harken System Guides and Drawings
And here for Harken Manuals & Support Information
