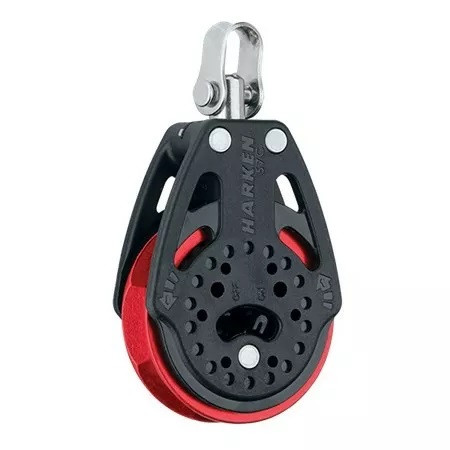

Harken 57mm Ratchet Block - Swivel, Red Sheave (HK2135.RED)

Harken 57mm Ratchet Block - Swivel, Red Sheave

Harken
SKU:
HK2135.RED
$181.87
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

On/off switch operates from both sides.

Standard grip: medium/light air; 10:1 holding power

Part no. 2135.RED:  57mm Ratchet Block - Swivel, Red Sheave

Specifications

  • Sheave Ø (mm) 57 mm
  • Sheave Ø (in) 2 1/4 in
  • Length (mm) 103 mm
  • Length (in) 4 1/16 in
  • Weight (g) 85 g
  • Weight (oz) 3 oz
  • Shackle pin Ø (mm) 5 mm
  • Shackle pin Ø (in) 3/16 in
  • Maximum line Ø (mm) 10 mm
  • Maximum line Ø (in) 3/8 in
  • Maximum working load (kg) 227 kg
  • Maximum working load (lb) 500 lb
  • Breaking load (kg) 907 kg
  • Breaking load (lb) 2000 lb
  • Holding power 10:1



Resources/References:

Harken Instructions

Need help to design your Harken system - take a look here for the Harken System Guides and Drawings
Or perhaps you need some other information (load calculators, block selectors, service instructions or manuals)?   Take a look here for all the official Harken Support Information
