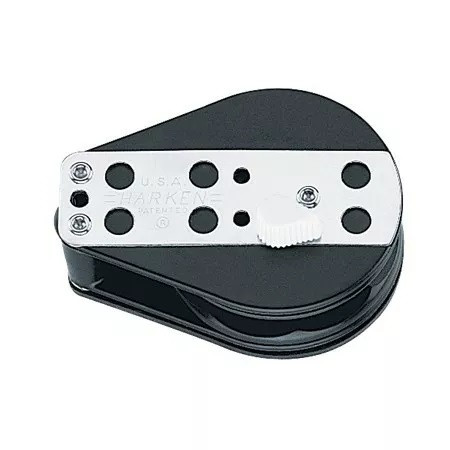

Harken 3.00" Cheek Hexaratchet Block - Port (HK016)

Harken 3.00" Cheek Hexaratchet Block - Port

Harken
SKU:
HK016
|
UPC:
097653002307
$208.92
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item.  Delivery lead time may take 2 or more weeks.

Hexaratchets® grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism.

Part no. 016: 3.00" Cheek Hexaratchet Block - Port

Specifications

  • Sheave Ø (mm) 76 mm
  • Sheave Ø (in) 3 in
  • Length (mm) 102 mm
  • Length (in) 4 in
  • Weight (g) 213 g
  • Weight (oz) 7 1/2 oz
  • Maximum line Ø (mm) 12 mm
  • Maximum line Ø (in) 7/16 in
  • Fasteners (mm) 4 RH mm
  • Fasteners (in) #8 RH in
  • Maximum working load (kg) 340 kg
  • Maximum working load (lb) 750 lb
  • Breaking load (lb) 1500 lb
  • Breaking load (kg) 680 kg
  • Footnote Includes fasteners and mounting pad.
  • Holding power 15:1
  • Turns counterclockwise
