Harken 16T Aluminum V Block
This is a Special Order item. Delivery lead time may take 2 or more weeks.

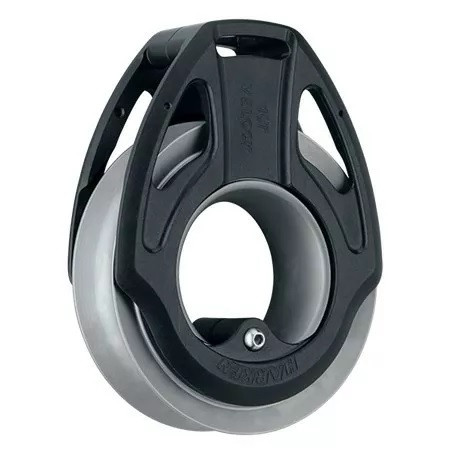

The V block delivers another breakthrough in Harken’s loop block series for Grand-Prix racers. Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air. Harken V blocks have aluminum sideplates, titanium sheave, and captive titanium roller bearings. V blocks are easy to disassemble for inspection and maintenance.
Part No. 3371AL: 16T Aluminum V Block
Specifications
- Sheave Ø (mm) 135 mm
- Sheave Ø (in) 5 5/16 in
- Length (mm) 175 mm
- Length (in) 6 15/16 in
- Weight (g) 1206 g
- Weight (oz) 42.54 oz
- Maximum line Ø (mm) 26 mm
- Maximum line Ø (in) 1 1/32 in
- Maximum working load (kg) 16000 kg
- Maximum working load (lb) 35200 lb
- Breaking load (kg) 32000 kg
- Breaking load (lb) 70400 lb
