Facnor FD 110 Manual Furling and Reefing System

FD110 10M KIT Ø7mm 12mm PIN KR05 T.TUBE F.LINE

FlatDeck webbing furler: Performance and easy use

• 26′ to 33′ sailboat (max Ø7mm forestay, bottom terminal with turnbuckle or removable eye)
• Thin and aerodynamic foil R14 (up to 35% lighter)
• Maximum luff (low profile drum)
• No risk of overriding (webbing guide exit)
• Great torque since the beginning of rotation
• No maintenance bearings (waterproof bearings, linear rotation)

All inclusive, this Facnor FD110-R14 (racing/cruising foil section) kit includes extra short link plates – middle and long length optional-, internal turnbuckle fitting as well as the webbing/furling delivered with fairleads

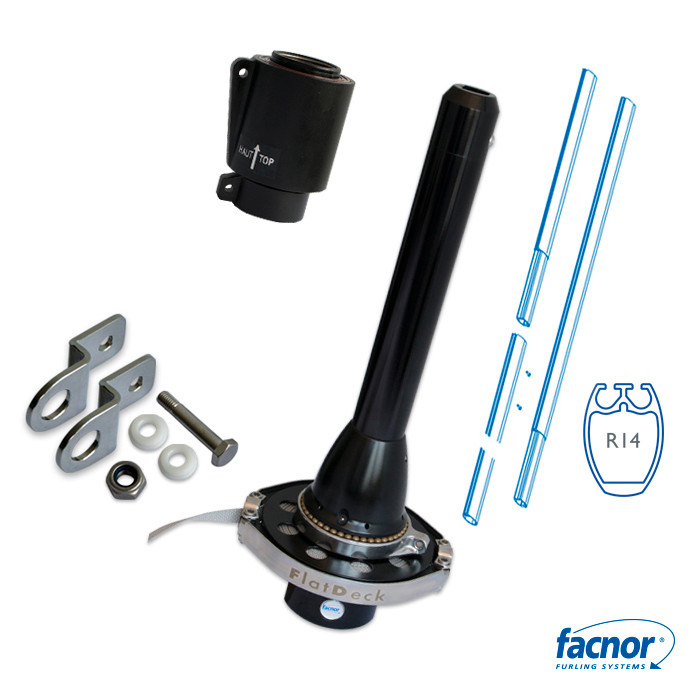

The FD110 furling kit includes :

• one drum with internal turnbuckle & rotating tack fittings, furling line s-s guide orientating on 360°, sealed mechanism
• one rope/webbing set delivered with 1x articulated and 3x single fairleads
• one set of extra short link plates (48mm long) with bottom forestay pin
• one swivel ref C14, sealed mechanism
• a batch of anodized twin groove foil sections ref R14
• high torque resistance connectors
• torx screws for foil connections
• a telescopic section
• a set of bushings
• a sail feeder
• a top cap
• a deflector wheel to avoid halyard wrap

The following kits are optional: 100/200mm drum link plates. Handle easily your headsails thanks to an FACNOR FD110 furling and reefing system!

Furling the Jib/Genoa is a simple handling operated from the cockpit.
The FD system enables to reef partially or furl completely the sail depending on weather conditions.
The FlatDeck is an innovative system fitted with a webbing to prevent from overriding and a massively improved torque.
Overall, the additional benefit with FD low profile drum is the maximized.
Its racing/cruising foil profile is lighter and more aerodynamic.
The 360° rotating tack fitting (fitted with Torlon® balls) takes up automatically the sail fullness when furling.
Widely tested round the world, the FD range includes foil sections and sturdy connections, waterproof mechanisms that insure reliability without specific maintenance.
Possibility to upgrade your LS/LX/RX furling system (or other brands) with a FlatDeck drum.

Technical Information:

• Weight 13.69 kg
• Approx. boat length (in meters) 8m-10m
• Approx. boat length (in feet) 26-33'
• Indicative max. area of Genoa
• MAX Forestay length (m) 10,40
• Forestay Ø (mm) 7,00
• Forestay bottom pin Ø (mm) 12,00
• Length of link plates (mm)
• Internal turnbuckle fitting 250
• Webbing-rope furling line kit Inclus / Included
• Type of webbing: Polyester
• Tack fitting: Rotating
• Foil reference R14
• Swivel reference C14
