Clamcleat Fine Line (Port) Low Profile Cleat for 3-6mm Rope
Clamcleat
$20.17 - $20.40
(No reviews yet)
Write a Review
Clamcleat
Clamcleat Fine Line (Port) Low Profile Cleat for 3-6mm Rope

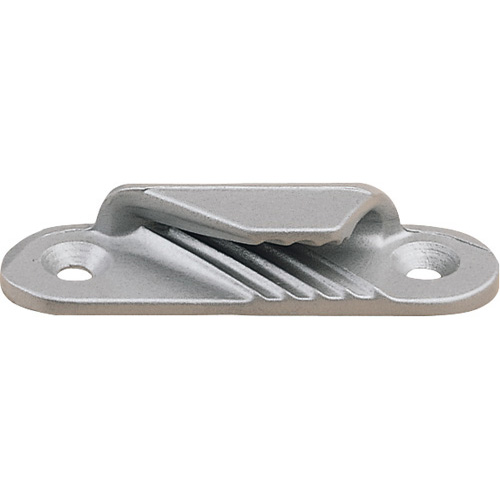

CL259 RACING FINE LINE (PORT)
Alloy version of the CL214W cleat, for sewing or riveting onto sails.
The tooth design of the CL259 Racing Fine Line (Port) allows a quick, positive lock that is easy to release. Add this to its low profile and ability to hold high loads, makes it an ideal cleat for adjusting leech lines on larger sails. Use a backplate when riveting a cleat onto fabric to prevent the rivet pulling through. It can be mounted in two positions and can be sewn or riveted to the sail. The CL259 is usually ftted to the Starboard side of a sail, when used for tensioning leech lines.
Also used for industrial sun blinds. On sailing dinghies it is used as a low profile deck cleat and for rudder downhauls.
Manufactured from aluminium for light weight and durable performance the CL259 is available in two finishes:
- CL259 has a silver stove enamel finish for a cost effective, high quality coating.
- CL259AN has a hard anodised finish to give the ultimate hard wearing surface. (Note that alloy cleats should be sewn onto carbon fibre sails, to avoid corrosion.)
SPECIFICATIONS
- Rope Diameter: 3-6mm (1/8 - 1/4")
- Material: Aluminium
- Hole Centres: 49mm (1 15/16")
- Length: 70mm (2 3/4")
- Width: 21mm (13/16")
- Height: 14mm (9/16")
- Bolt Size: M4 (#8-32. 5/32")
- Screw Size: 4.2 (No 8)
- Weight: 19gms (0.7oz)
