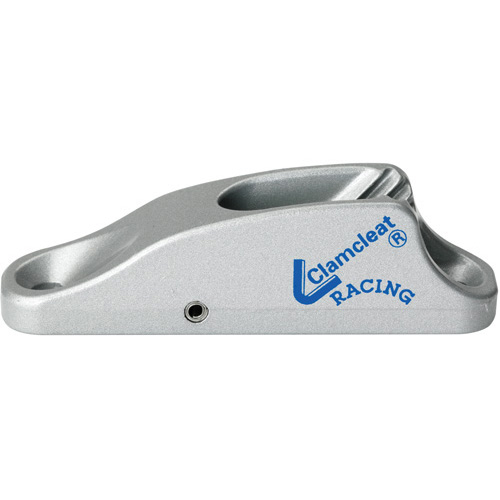

CL230 Racing Junior MK1 with Roller (silver stove enamel finish)

Clamcleat CL230 Racing Junior MK1 with Roller

Clamcleat
SKU:
C230/C230AN
|
UPC:
5024220123009
$29.09 - $30.72
(No reviews yet)
Current Stock:
Minimum Purchase:
2 units
Adding to cart… The item has been added
Description

CL230 RACING JUNIOR MK WITH ROLLER

The bottom roller of the Clamcleat® CL230 allows ropes to enter the cleat from below. Ideal for bringing a rope through a surface. Can also be rigged on a rope for 1:1 or 2:1 advantage.

Video of 1:1 advantage - see video below
Video of 2:1 advantage - see video below

Available in two finishes:

  • CL230 has a silver stove enamel finish for a cost effective, high quality coating.
  • CL230AN has a hard anodised finish to give a harder wearing surface.

CL230 is ideal for through-deck and through-mast applications. Images show it being used for Cunningham and Kicker controls on an International 14 dinghy. Also for tensioning the sunshade on the Wajer 38 powerboat. The CL824 pad can be used to raise CL230 so roller is above a surface. Allows a round hole to be drilled for the rope.

The CL230 can also be rigged on a rope. We recommend using a PT230SSE to aid rope release. For trapeze adjustment, with 4 or 5mm ropes, a CL834 handle can be fitted. (A lower cost alternative to the PT230SSE is PTLINK). If you are using this cleat to support your weight, it should be regularly inspected. Wearing or scuffing of the surface finish is acceptable. If there is any sign of wear or damage to the working or load-bearing parts, the cleat should be replaced.

SPECIFICATIONS

  • Rope Diameter: 3 - 6mm (1/8 - 1/4")
  • Material: Aluminium
  • Hole Centres: 66mm (2 5/8")
  • Length: 82mm (3 1/4")
  • Width: 18mm (11/16")
  • Height: 23mm (15/16")
  • Bolt Size: M5 (#10-24. 3/16")
  • Screw Size: 4.8 (No 10)
  • Weight: 35g (1.2oz)
