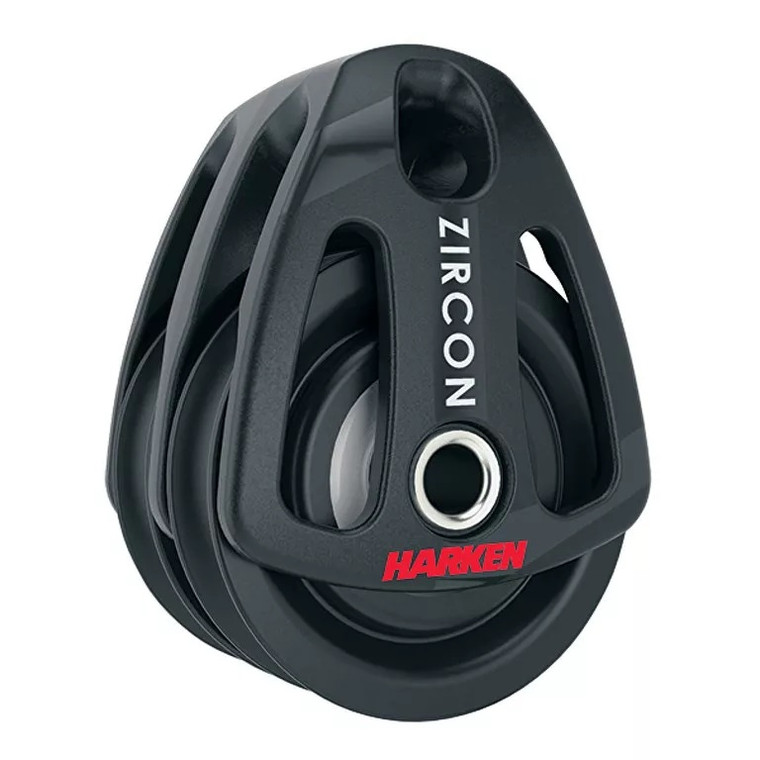

Harken 40mm Zircon Double Block
Harken
$187.81
(No reviews yet)
Write a Review
Harken
Harken 40mm Zircon Double Block
This is a Special Order item. Delivery lead time may take 2 or more weeks.
Zircon blocks help trimmers match sail shapes to new conditions immediately. At the core of the Zircon performance are industrial ceramic ball bearings mounted inside caged races. The cages keep these bearings separated so they don’t bunch, touch, and stop each other. The result is the most efficient small boat block Harken has ever made. Zircon blocks are available in 40- and 57-mm sheaves in single and double blocks, with or without beckets.
Part no. 2192: 40mm Zircon Double Block
Specifications
- Sheave Ø (mm) 40 mm
- Sheave Ø (in) 1 9/16 in
- Length (mm) 60 mm
- Length (in) 2 3/8 in
- Weight (g) 44.7 g
- Weight (oz) 1.58 oz
- Maximum line Ø (mm) 8 mm
- Maximum line Ø (in) 5/16 in
- Maximum working load (kg) 230 kg
- Maximum working load (lb) 500 lb
- Breaking load (kg) 680 kg
- Breaking load (lb) 1500 lb
Resources/Refrences:
Need help to design your Harken system - take a look here for the Harken System Diagrams
And here for Harken Manuals & Support Information
