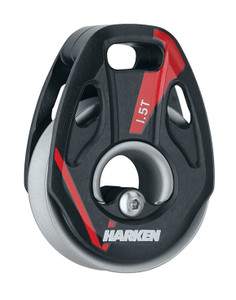

The V block delivers another breakthrough in Harken’s loop block series for Grand-Prix racers. Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air.
Harken V blocks have aluminum sideplates, titanium sheave, and captive titanium roller bearings. V blocks are easy to disassemble for inspection and maintenance. Wide sheave accepts multiple lines for sail changes or a single, high-load larger line that requires a small deflection.
Specifications
- Sheave Ø (mm) 47 mm
- Sheave Ø (in) 1 7/8 in
- Length (mm) 68 mm
- Length (in) 2 11/16 in
- Weight (g) 121 g
- Weight (oz) 4.27 oz
- Maximum line Ø (mm) 8 mm
- Maximum line Ø (in) 5/16 in
- Maximum working load (kg) 1500 kg
- Maximum working load (lb) 3300 lb
- Breaking load (lb) 6600 lb
- Breaking load (kg) 3000 kg
- Footnote Loop not included
