Andersen 52ST Winch Full Stainless 2+1 Hydraulic
Andersen
$9,211.52
(No reviews yet)
Write a Review
Andersen

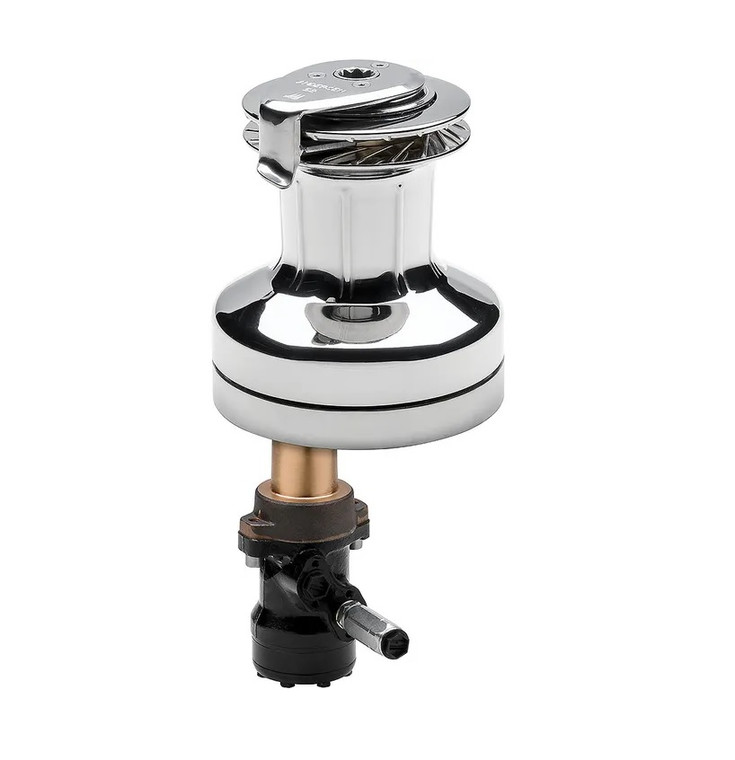

Andersen 52ST Winch Full Stainless 2+1 Hydraulic
RA2052013100: 52ST Winch FS Hydraulic 1-Speed
52 ST - Full Stainless Winch, Hydraulic
FEATURES
-
Smooth and reliable delivery of power throughout your boat.
- Available for models 52ST up to 72ST, and in a muti-speed version for 82-3ST
SPECIFICATIONS
- Part number: RA2052013100
- Weight (kg) 23
- Gear ratio 1st speed 3.2 : 1
- Gear ratio 2nd speed 10.5 : 1
- Power ratio 1st speed 16.2 : 1
- Power ratio 2nd speed 52.0 : 1
- Manual Speeds 2
- Hydraulic Speeds 1
- Drum Ø D: 100 mm
- Base Ø B: 200 mm
- Height H: 228 mm
- Line Entry L: 106 mm
- Line Size: 8-16 mm
- Weight: 23 kg
- Max Deck K: 68 mm
- Motor Depth J: 246 mm
- Gear Width N: 130 mm
PRODUCT INFORMATION
E1 SINGLE SPEED ELECTRIC CONVERSION KITS
The E1 Single Speed electric motor is a high quality European engineered and manufactured series wound motor. Carefully matched with the optimal gearbox they deliver high speed at low load for fast sheeting in, and low speed at high load for safe, fine tuning when trimming. The motors are available in 12 Volt and 24 Volt models providing smooth and quiet operation across a wide working load range.
Electric conversion kits are delivered mounted to a stainless steel winch/deck connection plate and have everything you need for do-it-yourself mounting including installation manual, push button, cables and a RA582000 push button.
