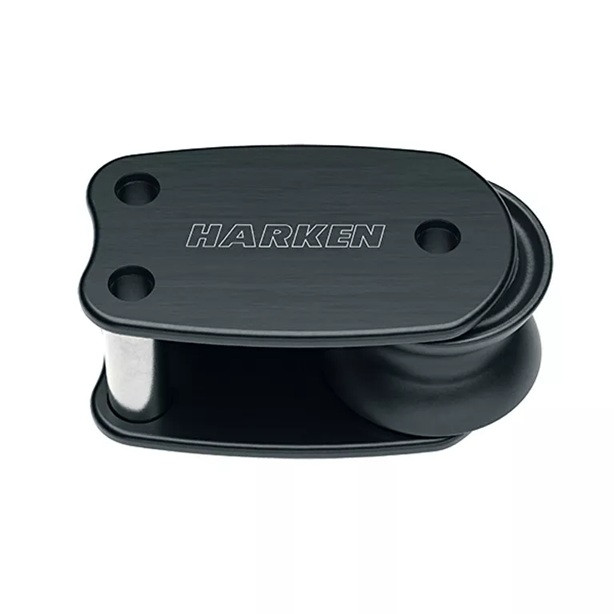

Harken 60 mm Tulip Footblock
This is a Special Order item. Please contact sales@adventuresafety.com.au for the delivery lead time and availability.
Footblocks are, by definition, fixed to the deck. The new tulip sheave design helps realign lead angle in situations where the lead is not perfectly aligned with the block - situations where off-center loading would cause significant additional friction with a narrower conventional sheave.
Part no. 9037: 60 mm Tulip Footblock
Specifications
- Sheave Ø (mm) 60 mm
- Sheave Ø (in) 2 3/8 in
- Length (mm) 116 mm
- Length (in) 4 9/16 in
- Width (mm) 67 mm
- Width (in) 2 5/8 in
- Height (mm) 53 mm
- Height (in) 2 1/16 in
- Weight (g) 366 g
- Weight (oz) 3/8 oz
- Maximum line Ø (mm) 14 mm
- Maximum line Ø (in) 9/16 in
- Number of fasteners 3
- Fasteners (mm) 10 mm
- Fasteners (in) 3/8 in
- Maximum working load (kg) 1633 kg
- Maximum working load (lb) 3600 lb
- Breaking load (lb) 7200 lb
- Breaking load (kg) 3266 kg
