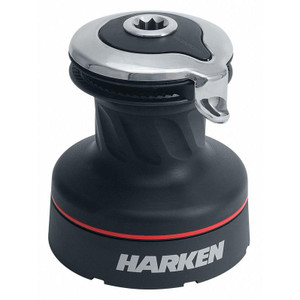

Harken 46 Electric Self-Tailing Rewind Radial Aluminum Winch - Reverse Speed, 12V (46RWA12H)

Harken 46 Electric Self-Tailing Rewind Radial Aluminum Winch - Reverse Speed, 12V

Harken
SKU:
46RWA12H
|
UPC:
097653601562
$11,869.13
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.

Activated remotely by twin in/out buttons, the Rewind Radial lets you safely ease and trim highly loaded sails in both directions without ever taking the line out of the self-tailer, a patented feature. Like all electric Radials, the Rewind operates like a normal Harken two-speed electric winch. A simple flip of the red knob on the winch base turns on the rewind feature. A spring-loaded arm of investment-cast stainless steel funnels and keeps line captive as it feeds in and out of the self-tailer while you adjust the sail under fingertip control. Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.

Part no. 46RWA12H: 46 Electric Self-Tailing Rewind Radial Aluminum Winch - Reverse Speed, 12V

Specifications

  • Weight (kg) 16 kg
  • Weight (lb) 35.3 lb
  • Maximum line Ø (mm) 14 mm
  • Maximum line Ø (in) 9/16 in
  • Fasteners (mm) M8 SH mm
  • Fasteners (in) 5/16 SH in
  • Fastener circle (mm) 150 mm
  • Fastener circle (in) 5 7/8 in
  • Height (mm) 203 mm
  • Height (in) 8 in
  • Number of fasteners 5
  • Minimum line Ø (mm) 10 mm
  • Minimum line Ø (in) 3/8 in
  • E (mm) 43 mm
  • E (in) 1 3/4 in
  • F (mm) 155 mm
  • F (in) 6 1/8 in
  • Configuration Self-tailing
  • Speed 2
  • Drum Ø (mm) 100 mm
  • Drum Ø (in) 3 7/8 in
  • Base Ø (mm) 184 mm
  • Base Ø (in) 7 1/4 in
  • Line entry height (mm) 90 mm
  • Line entry height (in) 3 9/16 in
  • Gear ratio - 1   2.30
  • Gear ratio - 2   9.17
  • Power ratio - 1   11.70
  • Power ratio - 2   46.50
  • Voltage (V) 12
  • G (mm) 280 mm
  • G (in) 11 in
  • Material Aluminum
  • Available power Electric horizontal 12V
