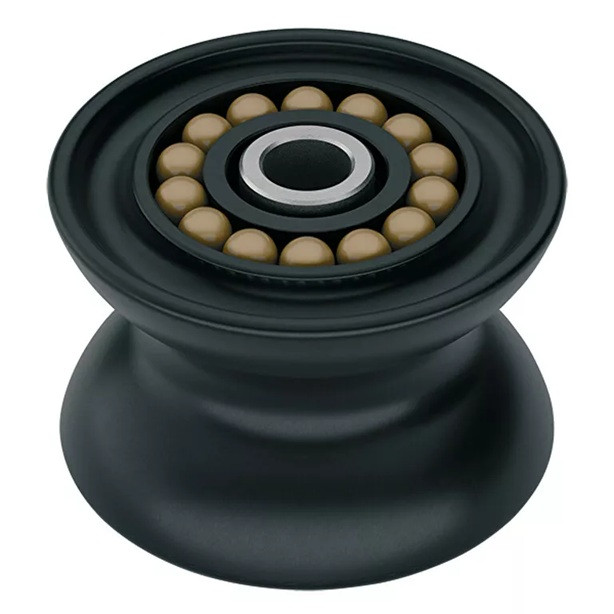

Harken 45mm Tulip Sheave
This is a Special Order item. Please contact sales@adventuresafety.com.au for availability and delivery lead time.
Tulip sheaves are ideal for applications where slight lead angle misalignments would otherwise lead to off-center loading and increased function. The line friendly wide design is also helpful where the lead angle changes as it does some outhaul systems. Aluminum sheave material with a pressed IGUS journal bearing, and Torlon ball bearings to support side loads.
Part no. 9090: 45mm Tulip Sheave
Specifications
- Maximum line Ø (mm) 12 mm
- Maximum line Ø (in) 1/2 in
- Fasteners (mm) 8 mm
- Fasteners (in) 5/16 in
- Sheave Ø (mm) 45 mm
- Sheave Ø (in) 1 3/4 in
- Width (mm) 32 mm
- Width (in) 1 1/4 in
- Weight (g) 83.5 g
- Weight (oz) 3 oz
- Center pin Ø (mm) 8 mm
- Center pin Ø (in) 5/16 in
- Maximum working load (kg) 998 kg
- Maximum working load (lb) 2200 lb
- Breaking load (kg) 1996 kg
- Breaking load (lb) 4400 lb
