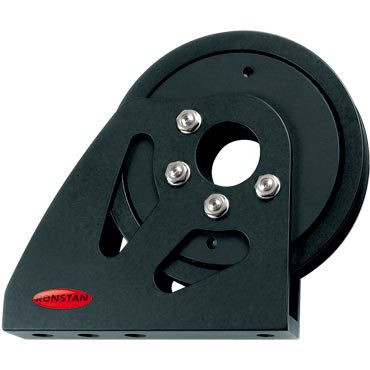

Ronstan Series 125 Orbit Block, Single Upright Lead (RF128171)

Ronstan Series 125 Orbit Block, Single Upright Lead

Ronstan
SKU:
RF128171
|
UPC:
9316800256167
$1,242.34
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

RF128171: SERIES 125 ROLLER BEARING BLOCK, UPRIGHT LEAD, SINGLE
Single Upright Lead

FEATURES

  • High static and dynamic load capacity.
  • Keeps lines close to the deck.
  • Cheek cut-outs for easy bearing cleaning and maintenance.
  • Blocks can be disassembled for servicing

SPECIFICATIONS

  • B.L. (kg) 7500
  • M.W.L. (kg) 3750
  • Max. Rope diameter (mm) 16
  • Weight (g) 777
  • Fastener Ø (mm) 10 + 8

PRODUCT INFORMATION

Ball Bearing models have Torlon® needle rollers for axial loads, and acetal ball bearings for side thrust loads.

The self-contained alloy sheave packages provide reliable, low-friction performance at high loads. The high axial loads are carried by Torlon® roller needle bearings, while side thrust loads are taken up by Acetal ball bearings.

APPLICATIONS

  • Typically used for halyards at the mast base.

MATERIALS

  • Alloy sheave and housing
  • Torlon® needle rollers
  • Black carbon Acetal ball bearings
