Wichard 55mm Ball Bearing Block Single Webbing D-ring (74118)

Wichard 55mm Ball Bearing Block Single Webbing D-ring

Wichard
SKU:
74118
|
UPC:
3587790741186
$79.48
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

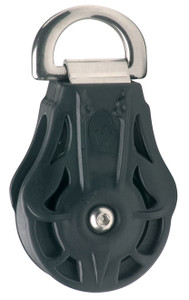

Wichard Single ball bearing block - Sheave 55 - Webbing D ring

Part # 74118

  • Complete range of ball bearing blocks
  • Modern design
  • Innovative design with two lateral races of ball bearings
  • Smooth running for low load adnhigh speed action
  • Under high load the hub runs on stainless steel bush which allows the sheave to run freely
  • Light cheeks protecting the sheave
  • Wide choice of fastenings thanks to the universal head

Applications

  • Mainsail systems and travelers
  • Spinnaker sheets
  • Genoa sheets
  • Running backstays

Specifications

  • Materials
    • Grade 316L stainless steel head configuration
    • Grade 316L stainless steel load straps
    • POM cheeks
    • Delrin® ball bearings
    • Composite saddle for cam models
    • Composite sheave
    • Terminal (shackle i.e…): 316L stainless steel grade
  • Rope size: Pour cordage de 12 m
  • Length (mm): 110
  • Width (mm): 63
  • Thickness (mm): 29
  • Sheave diameter (mm): 55
  • Working load (kg): 720
  • Breaking load (kg): 1500
  • Weight (g): 166
